D-Sub Connectors, Right-Angled, Solder Pins – US-Style

Go to configuration
Note

Technical Data

Shell Steel, nickel plated, tin plated
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Gold over nickel, tin plated solder area
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1 kV AC
Current Rating 5 A
Temperature Range -55 °C ... +125 °C
Processing Wave soldering
Quality Class Quality class 3, min. 50 cycles, more options on request

Downloads

Data Sheet download
3D Models
111-09-1-1-10.stp download 111-09-2-1-10.stp download
show all Note: Embedded 3D data may have tolerances.

Configure your product

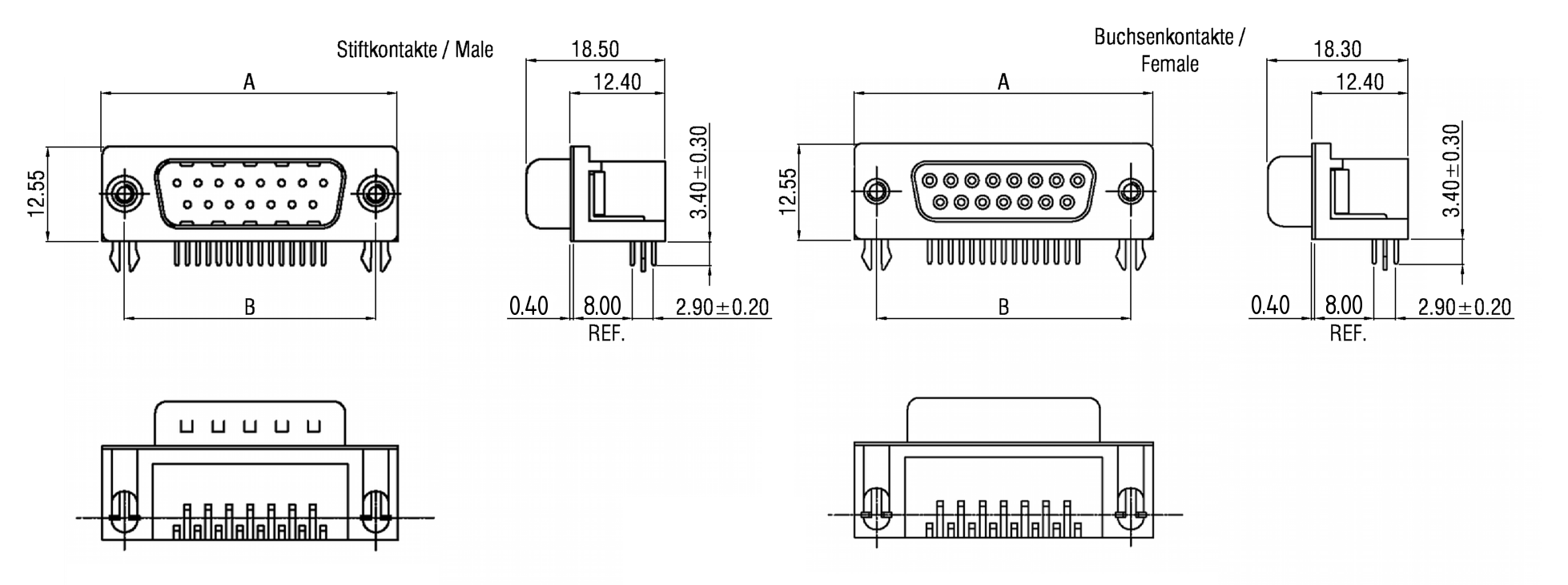

n A B
09 30.81 24.99
15 39.14 33.32
25 53.04 47.04
37 69.32 63.50

Select the desired configuration:

Series
Please select 1 option
111
Contacts
Please select 1 option
09/15/25/37
Terminal
Please select 1 option
1 Male
2 Female
Rivets
Please select 1 option
1 Riveted ground brackets,
UNC 4-40 rivet*
Bolts
Please select 1 option
00 W/o bolts
10 Loose bolts
20 Assembled bolts
Leadfree (Optional)
Please select 0 to 1 option
LF21 On request leadfree w/o
RoHS exemption 6c
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
111
Contacts
Please select 1 option
09/15/25/37
Terminal
Please select 1 option
1 Male
2 Female
Rivets
Please select 1 option
2 Ground brackets with UNC 4-40 thread* with
assembled bolts, economy version
Bolts
Please select 1 option
20 Assembled bolts
Leadfree (Optional)
Please select 0 to 1 option
LF21 On request leadfree without
RoHS exemption 6c
Add to inquiry basket

* Max. Anzugdrehmoment der UNC 4-40 Gewinde 0,3 Nm
  Max. torque of UNC 4-40 threads: 0.3 Nm
