Technical Data
Insulator Thermoplastic, UL94 V-0
Contact Surface Au flash plating over contact area
100µ" min. Sn matte plating on solder area
50µ" min. Ni underplating overall
100µ" min. Sn matte plating on solder area
50µ" min. Ni underplating overall
Contact Resistance < 30 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V RMS
Current Rating 1.1 A
Temperature Range -55 °C ... +105 °C
Processing 260 °C for 10s max.
Downloads
Data Sheet download
Configure your product
| No. of contacts | Key No.1 Pin no. | A | B | D | E | G | H | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 010 | 03-04 | 2.2 | 4.2 | 1.0 | 3.0 | 4.0 | 9.5 | 7.0 | 8.24 | 6.8 |
| 016 | 05-06 | 3.2 | 6.2 | 2.0 | 5.0 | 7.0 | 12.5 | 10.0 | 11.24 | 9.8 |
| 040 | 15-16 | 8.2 | 13.2 | 7.0 | 12.0 | 19.0 | 24.5 | 22.0 | 23.24 | 21.8 |
| 060 | 21-22 | 11.2 | 20.2 | 10.0 | 19.0 | 29.0 | 34.5 | 32.0 | 33.24 | 31.8 |
| 080 | 31-32 | 16.2 | 25.2 | 15.0 | 24.0 | 39.0 | 44.5 | 42.0 | 43.24 | 41.8 |
| 100 | 41-42 | 21.2 | 30.2 | 20.0 | 29.0 | 49.0 | 54.5 | 52.0 | 53.24 | 51.8 |

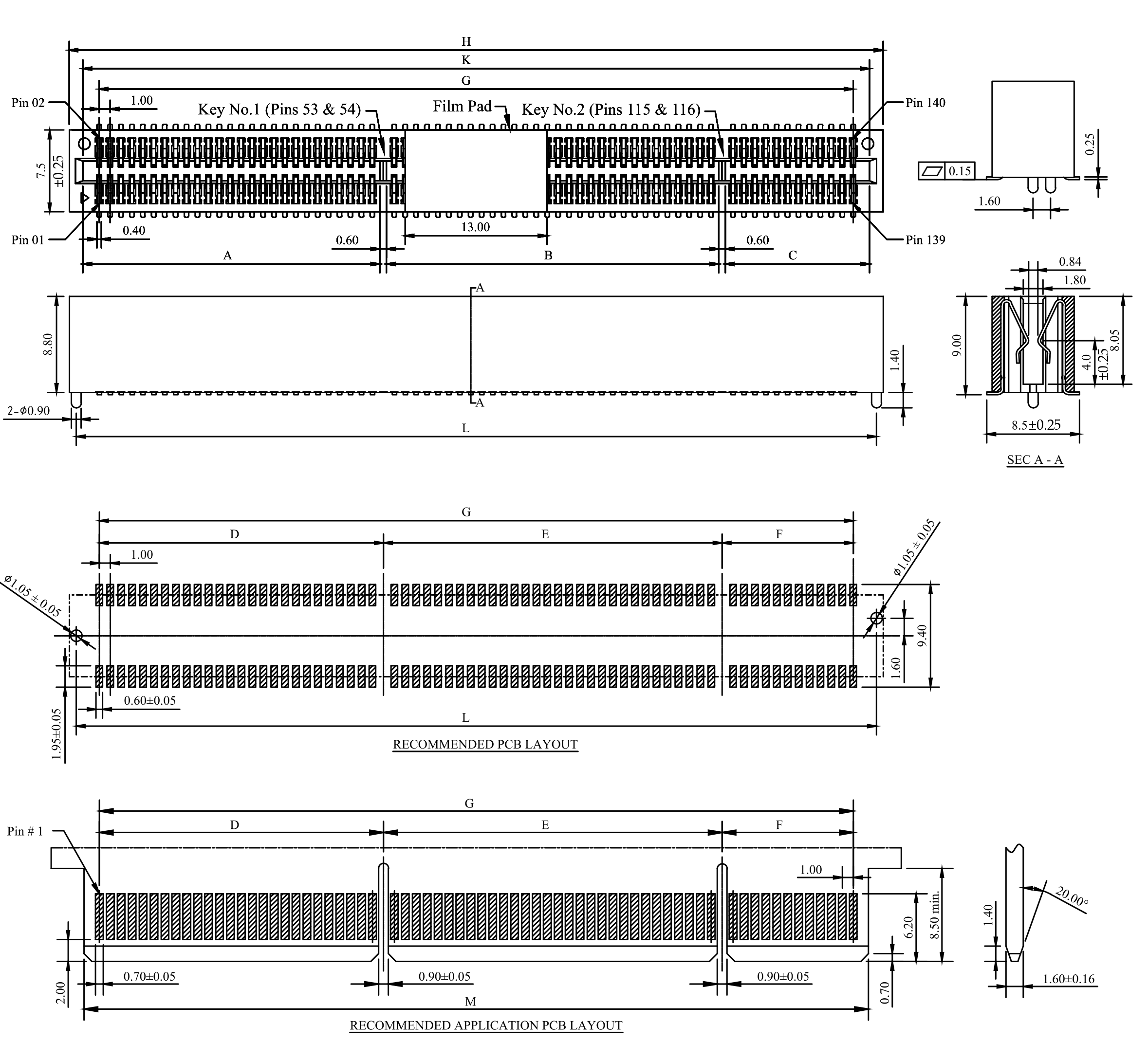

| No. of contacts | KeyNo.1 Pin no. | KeyNo.2 Pin no. | A | B | C | D | E | F | G | H | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120 | 31-32 | 63-64 | 16.2 | 15.4 | 29.2 | 15.0 | 16.0 | 28.0 | 59.0 | 64.5 | 62.0 | 63.24 | 61.8 |
| 140 | 53-54 | 115-116 | 27.2 | 30.4 | 13.2 | 26.0 | 31.0 | 12.0 | 69.0 | 74.5 | 72.0 | 73.24 | 71.8 |
