1380

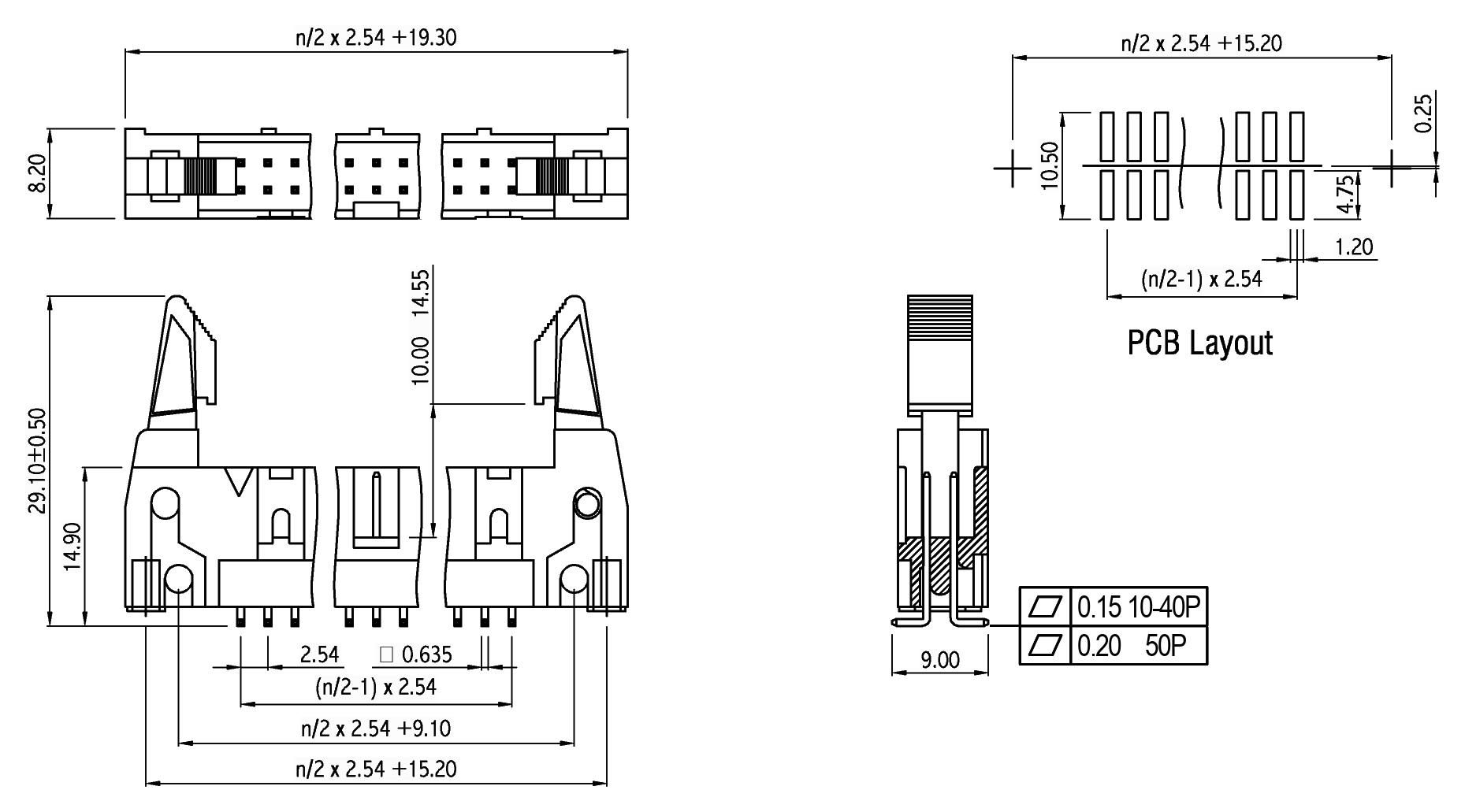

SMT Box Headers with Latches, 2.54mm Pitch, Vertical

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Acc. to options, over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC
Voltage Rating 250 V AC
Current Rating 3 A
Temperature Range -40 °C ... +105 °C
Processing Reflow soldering

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
1380
Contacts
Please select 1 option
10/14/16/20
26/34/40/50
Latches
Please select 1 option
00 W/o latches
10 Short latches
20 Long latches
Plating
Please select 1 option
00 Gold plated
60 Duplex Plating
Package
Please select 1 option
ST In tubes
Add to inquiry basket

Technical Information
