153C

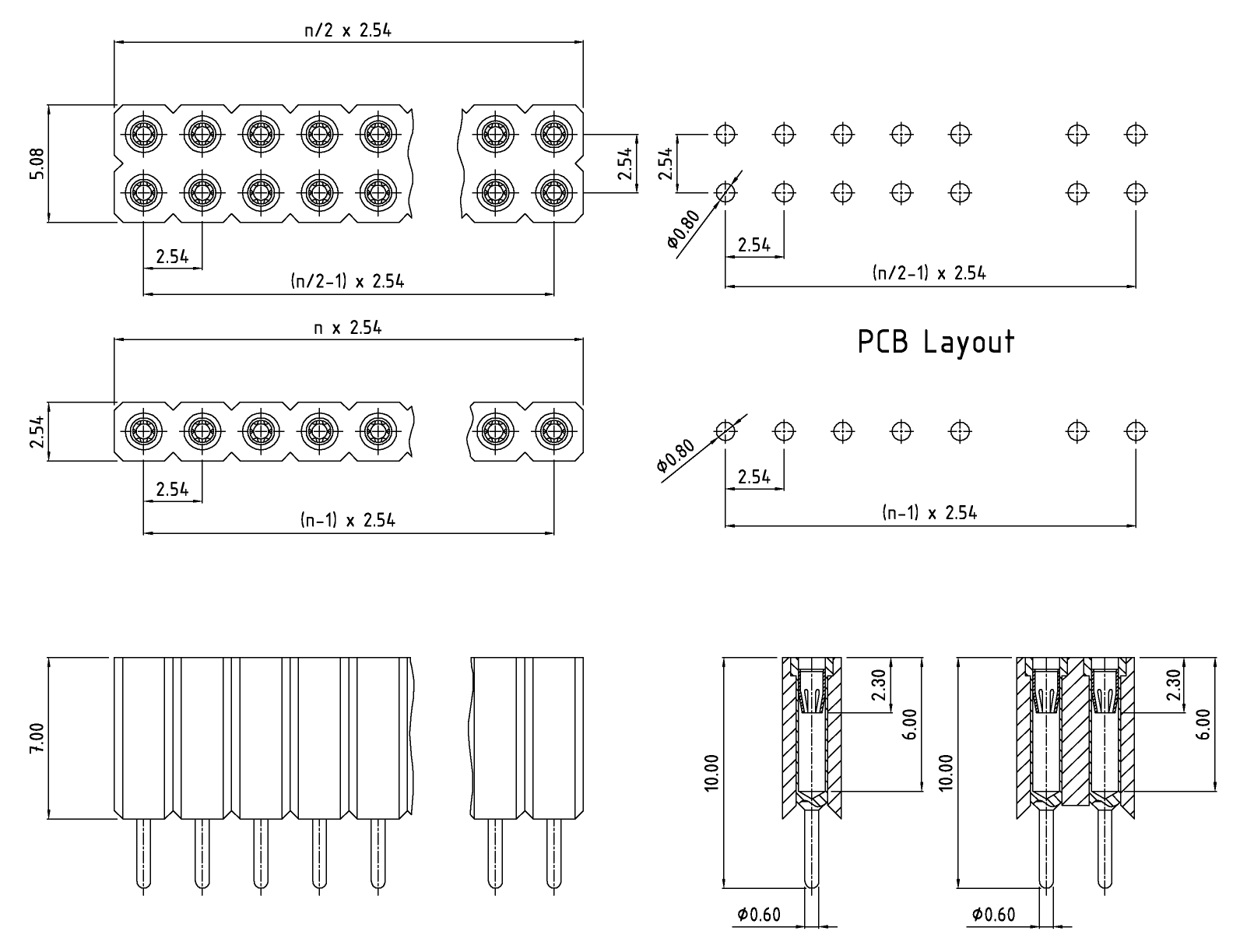

Precision Female Headers, 2.54mm Pitch, Straight, Single/Double Row, 7.0mm Profile
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Sleeve: screw machined brass
Clip: 6-Finger-Clip, Beryllium-Copper
Clip: 6-Finger-Clip, Beryllium-Copper
Contact Surface Acc. to options (see below), over Ni (1.3 ... 2.5µm)
Contact Resistance < 10 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1 kV RMS
Voltage Rating 100 V RMS / 150 V DC max.
Current Rating 3 A
Temperature Range -55 °C ... +125 °C
Processing Wave or reflow soldering
