46-534

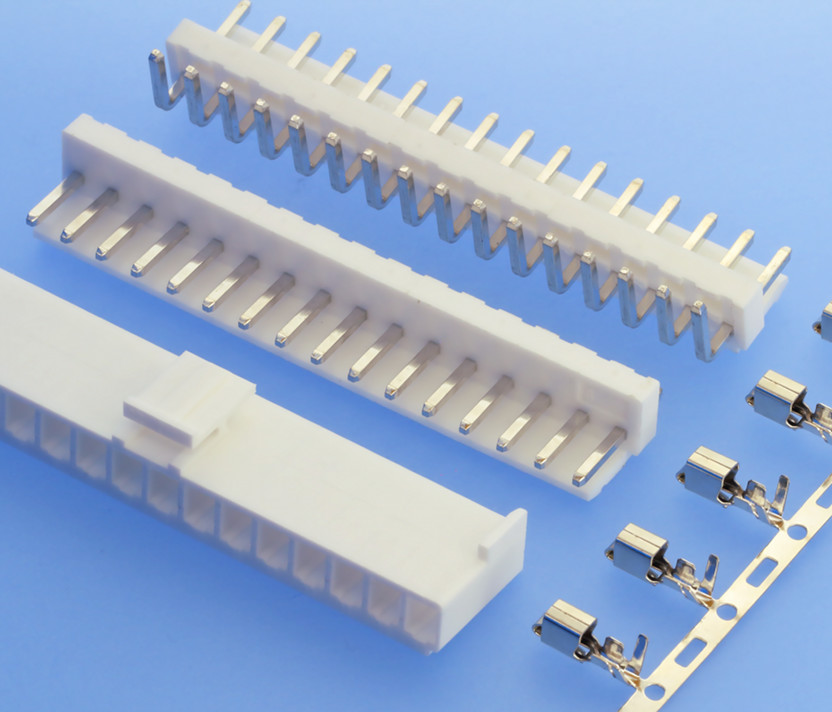

Friction Lock Headers / Crimp Housings, 3.96mm Pitch, Straight/Right-Angled

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Square pin 1.14mm, copper alloy
Contact Surface Sn over Ni
Applicable wire AWG 20 ~ 16
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1500 V AC
Voltage Rating 250 V AC/DC
Current Rating 7 A AC/DC
Temperature Range -25 °C ... +85 °C
Processing Wave soldering

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-534
Contacts
Please select 1 option
02-16
01 (for crimp contacts)
Type
Please select 1 option
1 Housing
2 Crimp contacts
Plating
Please select 1 option
50 Tin plated (Standard) (not used for housings)
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
46-534
Contacts
Please select 1 option
02-16
Type
Please select 1 option
3 Straight pin header
4 Right-angled pin header
Plating
Please select 1 option
50 Tin plated
Add to inquiry basket

Technical Information
