46-583

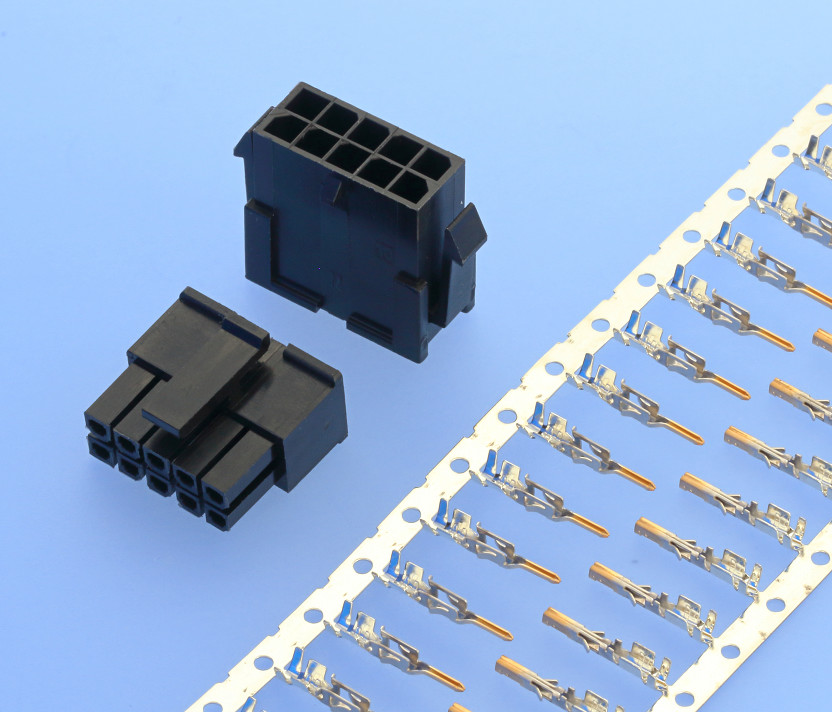

Crimp Housings & Male/Female Crimp Terminals, 3.00mm Pitch

Go to configuration
Note

Technical Data

Color Black
Insulator Thermoplastic, rated UL94 V-2
Contact Material Copper alloy
Contact Surface Sn over Ni
Applicable wire AWG 28 ~ 24
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1.5 kV AC
Voltage Rating 250 V AC/DC
Current Rating 5 A AC/DC
Temperature Range -25 °C ... +85 °C

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
Contacts
Contacts
Please select 1 option
01
Type
Please select 1 option
2 Female terminal
6 Male terminal
Plating
Please select 1 option
50 Tin plated
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
Housings
Contacts
Please select 1 option
02-12 Single row
02-24 Double row
Type
Please select 1 option
1 Housing for female contacts
5 Housing for male contacts
Rows
Please select 1 option
1 Single row
2 Double row
