5110

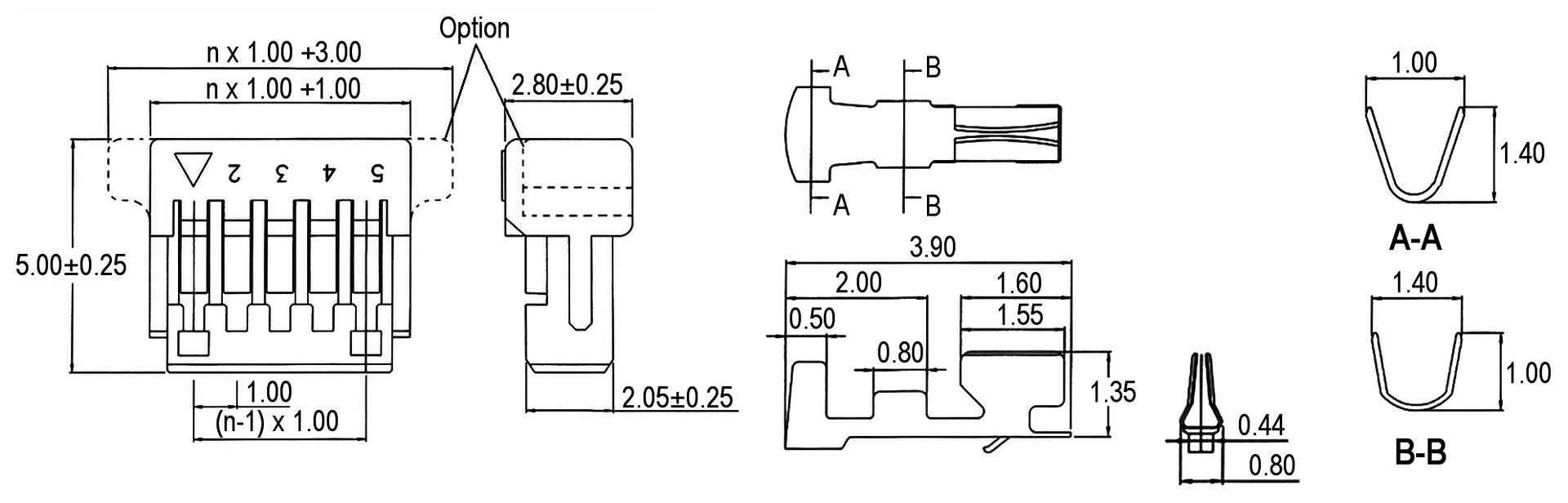

SMT Friction Lock Headers / Crimp Housings, 1.00mm Pitch, Vertical/Horizontal

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Applicable wire AWG 32 ~ 28
Contact Resistance < 20 mΩ
Insulation Resistance > 100 MΩ
Test Voltage 500 V AC
Voltage Rating 50 V AC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C (Housings -25 °C ... +85 °C)
Processing Reflow soldering

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
5110
Contacts
Please select 1 option
02-10
12-20
Type
Please select 1 option
1 Housing for female contacts
Option
Please select 1 option
[..] Housing with ears (standard)
0 Housing w/o ears (option)
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
5110
Contacts
Please select 1 option
01
Type
Please select 1 option
2 Crimp terminals
Plating
Please select 1 option
50 Tin plated
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
5110
Contacts
Please select 1 option
02-10
12-20
Type
Please select 1 option
3 Vertical pin header
4 Horizontal pin header
Plating
Please select 1 option
50 Tin plated
Packaging
Please select 1 option
ST In tubes w/o Pick&Place-Pads
TR (Option) Tape & Reel Packaging
PPTR (Option) Tape & Reel with P&P-Pads
Add to inquiry basket

Technical Information
