518

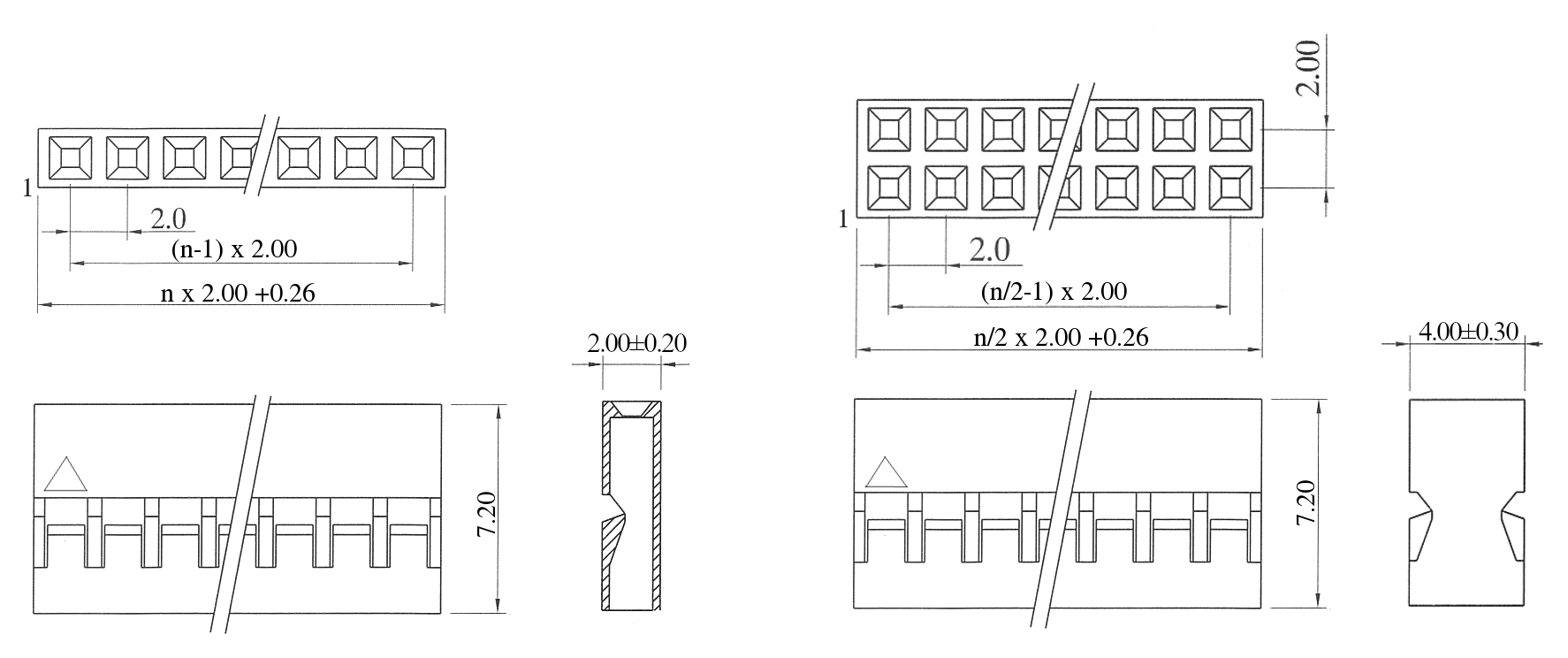

Crimp Housings, 2.00mm Pitch, Single/Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Applicable wire AWG 30 ~ 26
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 800 V AC
Voltage Rating 250 V AC
Current Rating 1 A
Temperature Range -25 °C ... +85 °C

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
518
Contacts
Please select 1 option
02-30 Single row
04-80 Double row
Type
Please select 1 option
1 Housing single row
2 Housing double row
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
518
Contacts
Please select 1 option
01
Type
Please select 1 option
3 Contacts
Plating
Please select 1 option
00 Gold plated
Retention Force (Optional)
Please select 1 option
[ ] Normal retention forces
1 Raised retention forces (for 2-6 contacts)
Add to inquiry basket
