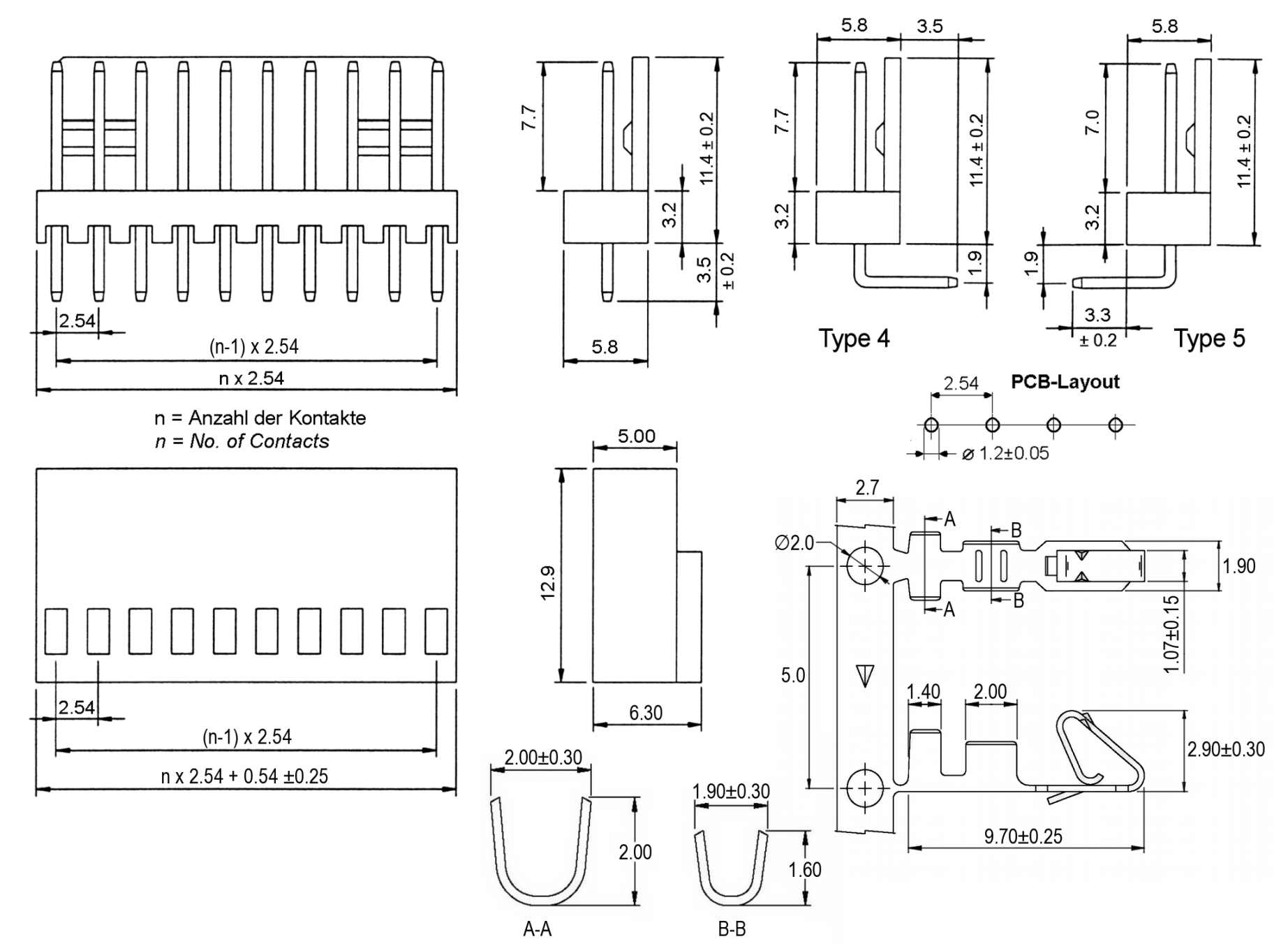

Friction Lock Headers / Crimp-Housings, 2.54mm Pitch, Straight/Right-Angled

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-2 (UL94 V-0 on request)
Contact Material 0.64mm square pin, copper alloy
Applicable wire AWG 28 ~ 22
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1000 V AC
Voltage Rating 250 V AC
Current Rating 3 A
Temperature Range -25 °C ... +85 °C
Processing Wave soldering

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
528
Contacts
Please select 1 option
02-20
01 (for crimp contacts)
Type
Please select 1 option
1 Housing
2 Crimp contacts
3 Straight pin header
4 Right-angled pin header
5 Reverse right-angled pin header
Plating
Please select 1 option
50 Tin plated (Standard) (not used for housings)
00 Gold plated (on request)
