538

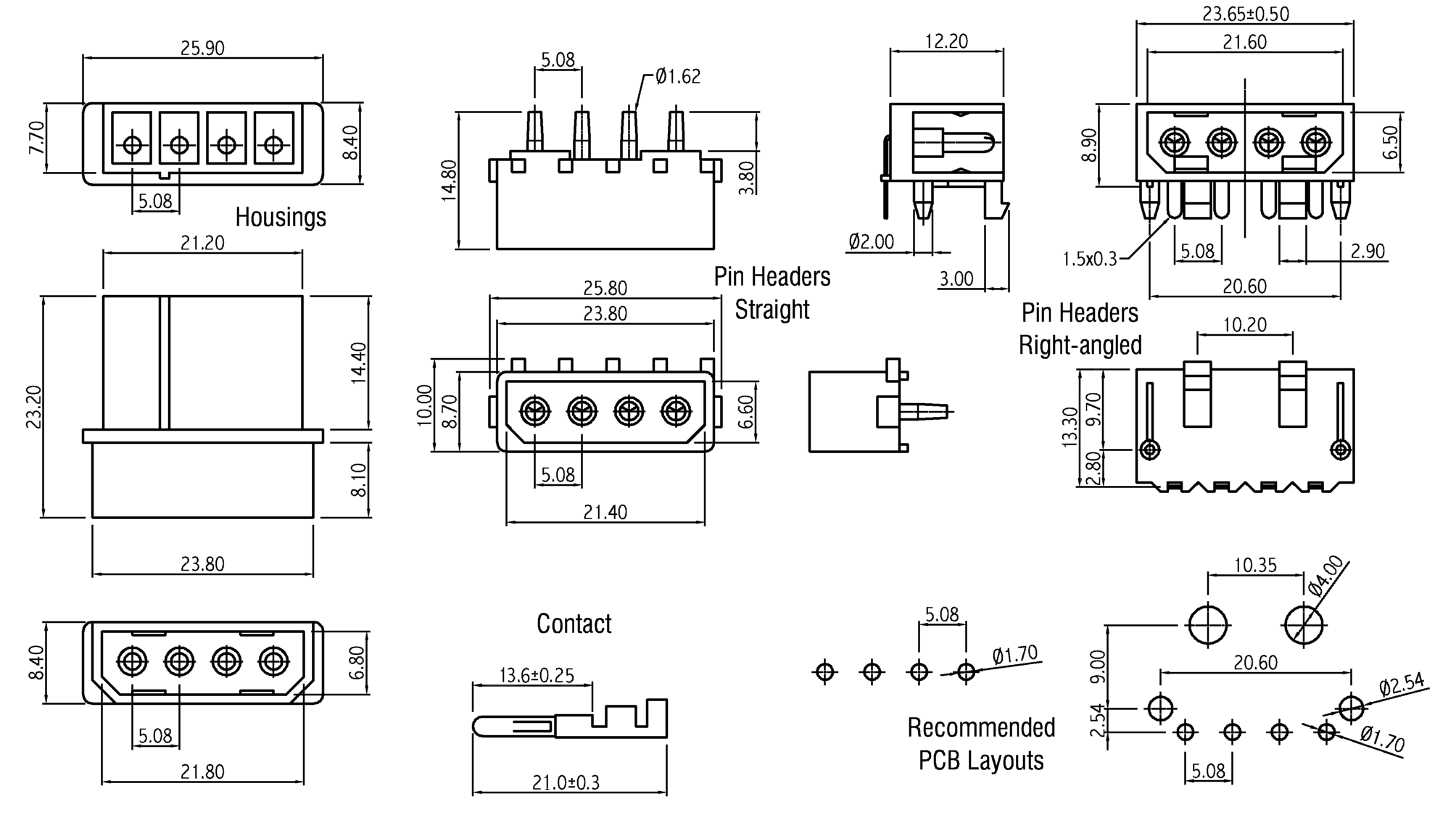

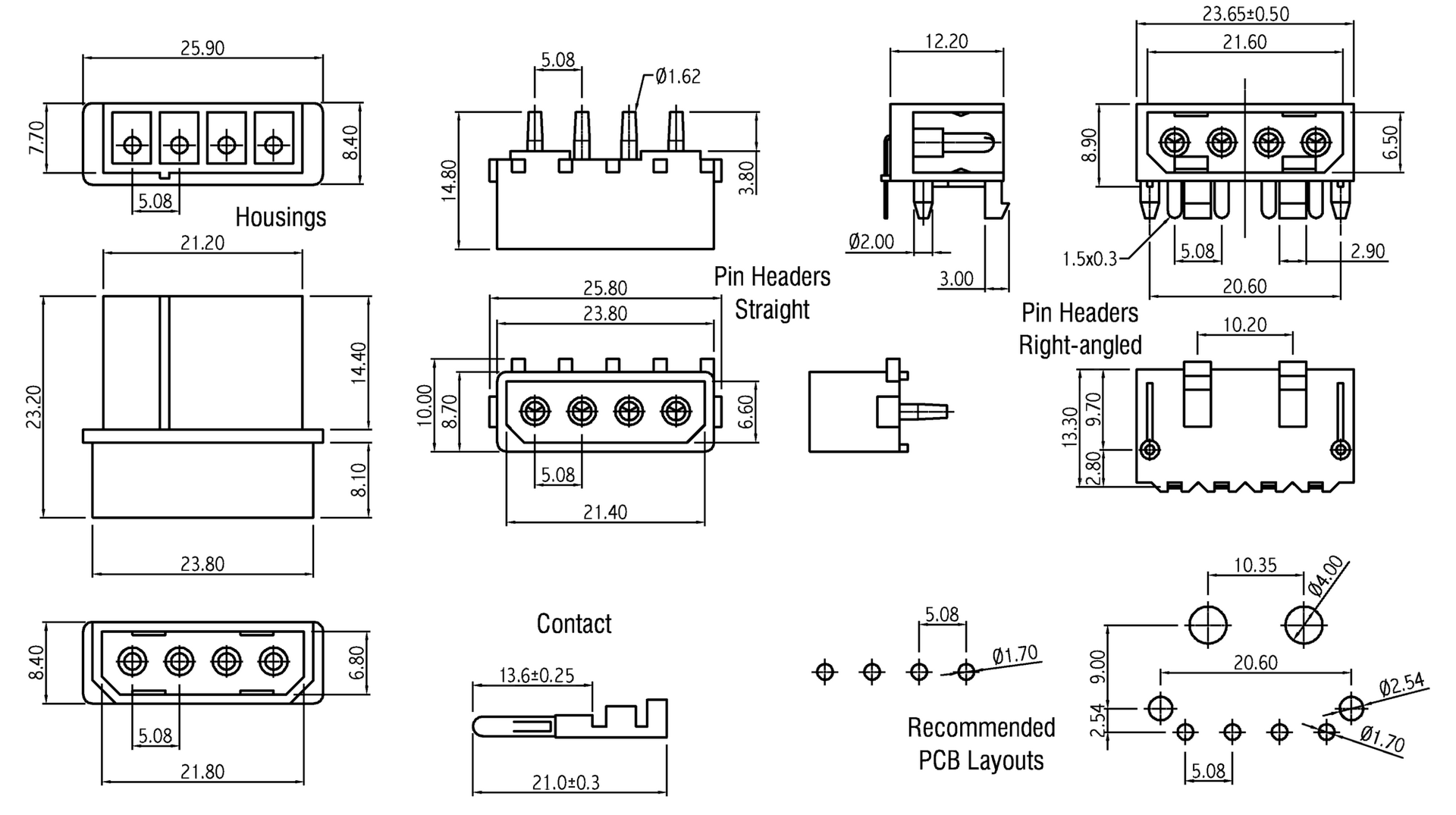

Power Supply Friction Lock Male Headers / Housings, 5.08mm Pitch

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-2
Contact Material Copper alloy
Applicable wire AWG 24 ~ 18
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1.5 kV AC
Voltage Rating 250 V AC/DC
Current Rating 10 A
Temperature Range -25 °C ... +85 °C
Processing Wave soldering

Downloads

Data Sheet download

Passende Buchsen:
Compatible Jacks:
539

Configure your product

Select the desired configuration:

Series
Please select 1 option
538
Contacts
Please select 1 option
04
Type
Please select 1 option
1 Housing
3 Straight pin header
4 Right-angled pin header
Plating
Please select 1 option
50 Tin plated (Standard)
00 Gold plated (on request)
Not necessary for housings
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
538
Contacts
Please select 1 option
01
Type
Please select 1 option
2 Crimp terminals
Plating
Please select 1 option
50 Tin plated (standard)
00 Gold plated (on request)
Add to inquiry basket

Technical Information
