582

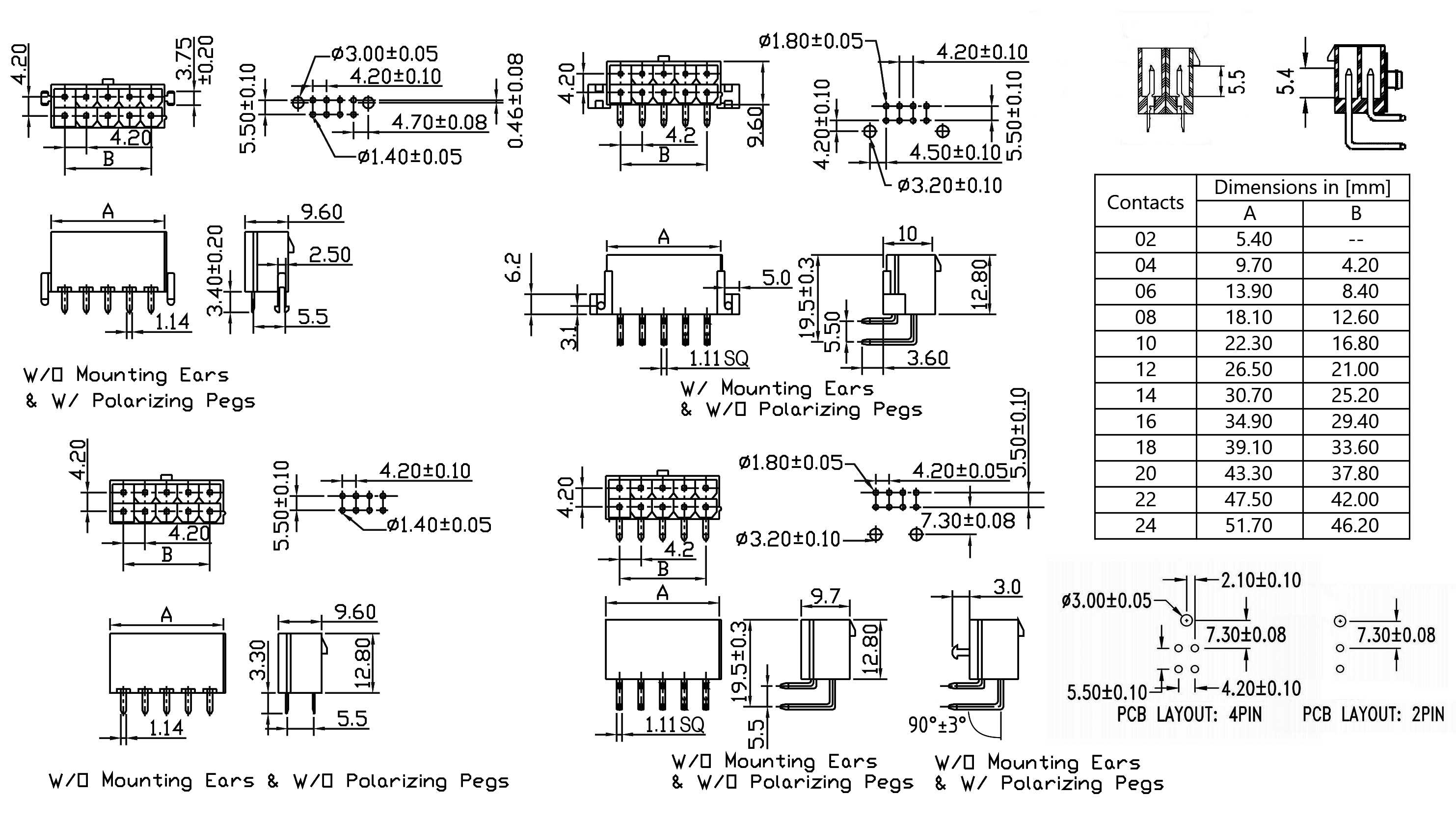

Friction Lock Male Headers, Double Row, 4.20mm Pitch, Straight/Right-Angled

Go to configuration
Note

Technical Data

Color White
Insulator Thermoplastic, rated UL94 V-2 (UL94 V-0 on request)
Contact Material Square pin 1.14mm, copper alloy
Contact Surface Acc. to options (see below), over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1.5 kV AC
Voltage Rating 250 V AC
Current Rating up to 9 A (Dependent on AWG-Range)
Temperature Range -40 °C ... +105 °C
Processing Wave soldering

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
582
Contacts
Please select 1 option
02-24
Type
Please select 1 option
3 Straight
4 Right-angled
Mounting
Please select 1 option
0 w/o mounting ears & pegs
1 With mounting ears (right-angled only)
2 With loc. pegs
Plating
Please select 1 option
50 Tin plated
Add to inquiry basket

Technical Information
