605

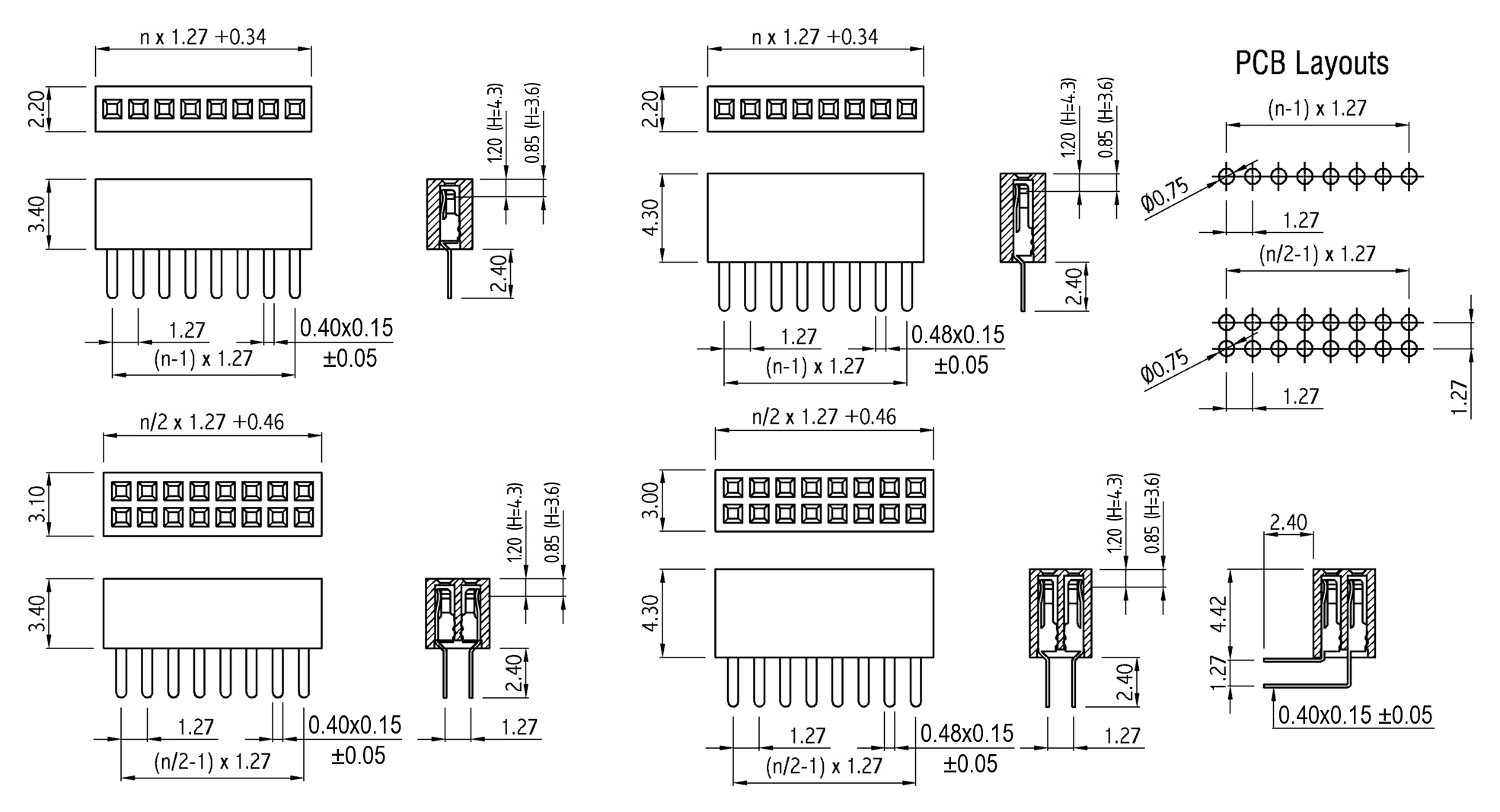

Female Headers, 1.27mm Pitch, Straight/Right-Angled – 3.4/4.3mm Profile

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Acc. to options (see below), over Ni (1.3 ... 2.5µm)
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing Wave or reflow soldering

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
605
Contacts
Please select 1 option
003-036 Single row
006-080 Double row
Rows
Please select 1 option
1 Single row
2 Double row
Type
Please select 1 option
1 Straight
2 Right-angled (double row,
4.3mm profile only)
Height
Please select 1 option
1 Height 3.4mm
2 Height 4.3mm
Plating
Please select 1 option
00 Gold plated
50 Tin plated
60 Duplex plating
Add to inquiry basket

Technical Information
