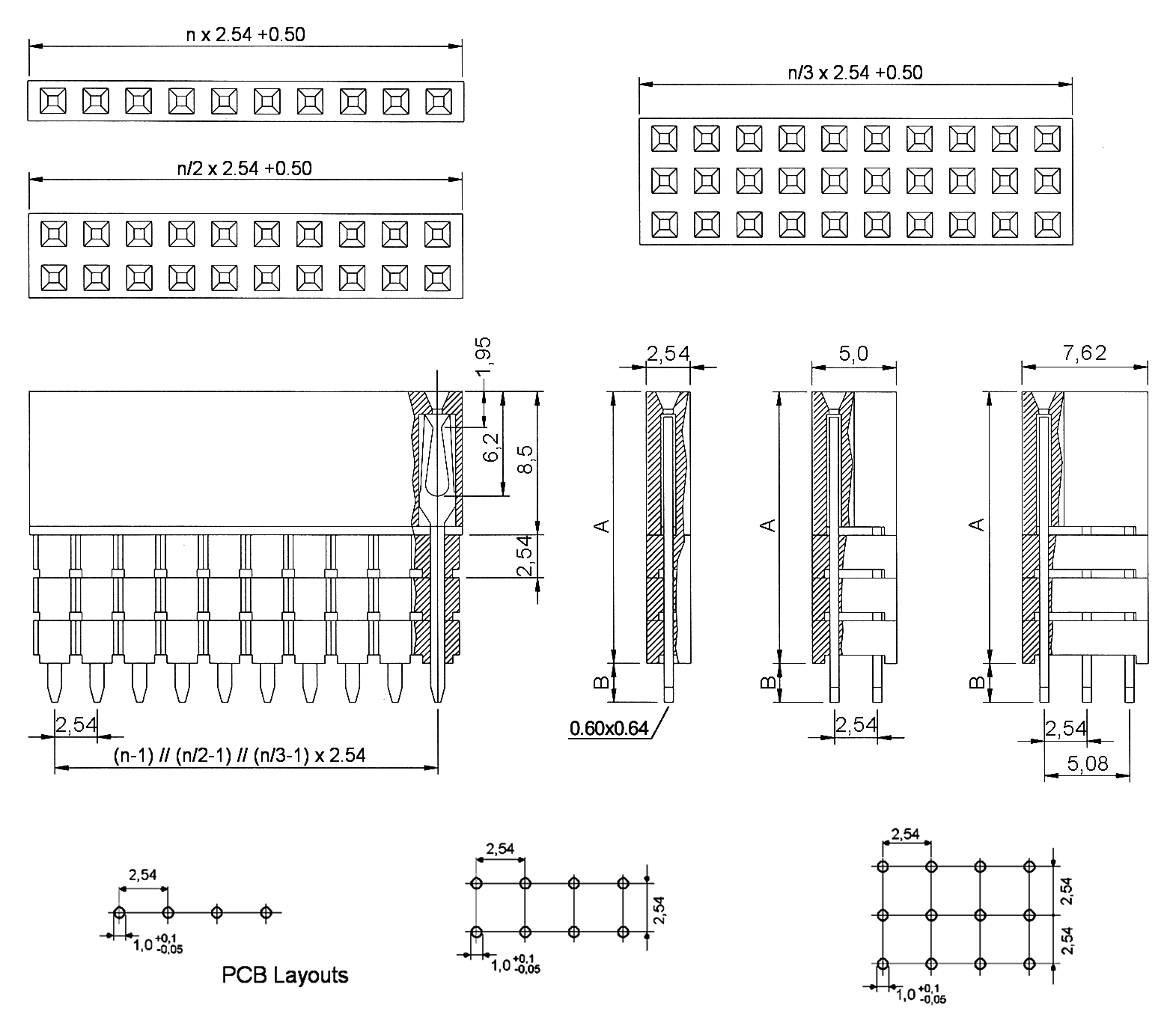

Long Profile Female Headers, 2.54mm Pitch, Straight, 1/2/3 Rows – horizontally stackable

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Acc. to options (see below), over Ni (1.3 ... 2.5µm)
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC
Voltage Rating 250 V AC
Current Rating 3 A
Temperature Range -40 °C ... +105 °C
Processing Wave or reflow soldering

Downloads

Data Sheet download

Gabelkontakte für Vierkantstifte Sq0,635mm oder 0,64x0,6mm.
Fork contacts for Sq0.635mm or 0.64x0.6mm pins.
Voll kompatibel zum PC-104 / PC-104+ Standard (stapelbar)
Full support for PC-104 / PC-104+ Standard (stackable)
In Verbindung mit W+P-Stiftleiste / in combination with 415

Configure your product

W+P PRODUCTS Buchsenleiste

Select the desired configuration:

Series
Please select 1 option
622
Contacts
Please select 1 option
003-040 Single row
006-080 Double row
009-120 Triple row
Rows
Please select 1 option
1 Single row
2 Double row
3 Triple row
Dimensions
Please select 1 option
10 A=11,05 B=2,30mm
20 A=11,05 B=7,35mm
30 A=11,05 B=12,20mm
40 A=13,59 B=4,85mm
50 A=13,59 B=9,65mm
60 A=16,13 B=2,30mm
70 A=16,13 B=7,10mm
80 A=18,67 B=4,60mm
90 A=21,21 B=2,06mm
95 A=8,50 B=9,89mm
Plating
Please select 1 option
00 Gold plated
50 Tin plated
60 Duplex plating
