SMT Female Headers, 1.00mm Pitch, Vertical, Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Gold over nickel
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing Reflow soldering

Downloads

Data Sheet download

Doppelfederkontakte für
Vierkantstifte 0,30mm.
Dual beam contacts accept
0.30mm square pins.

Configure your product

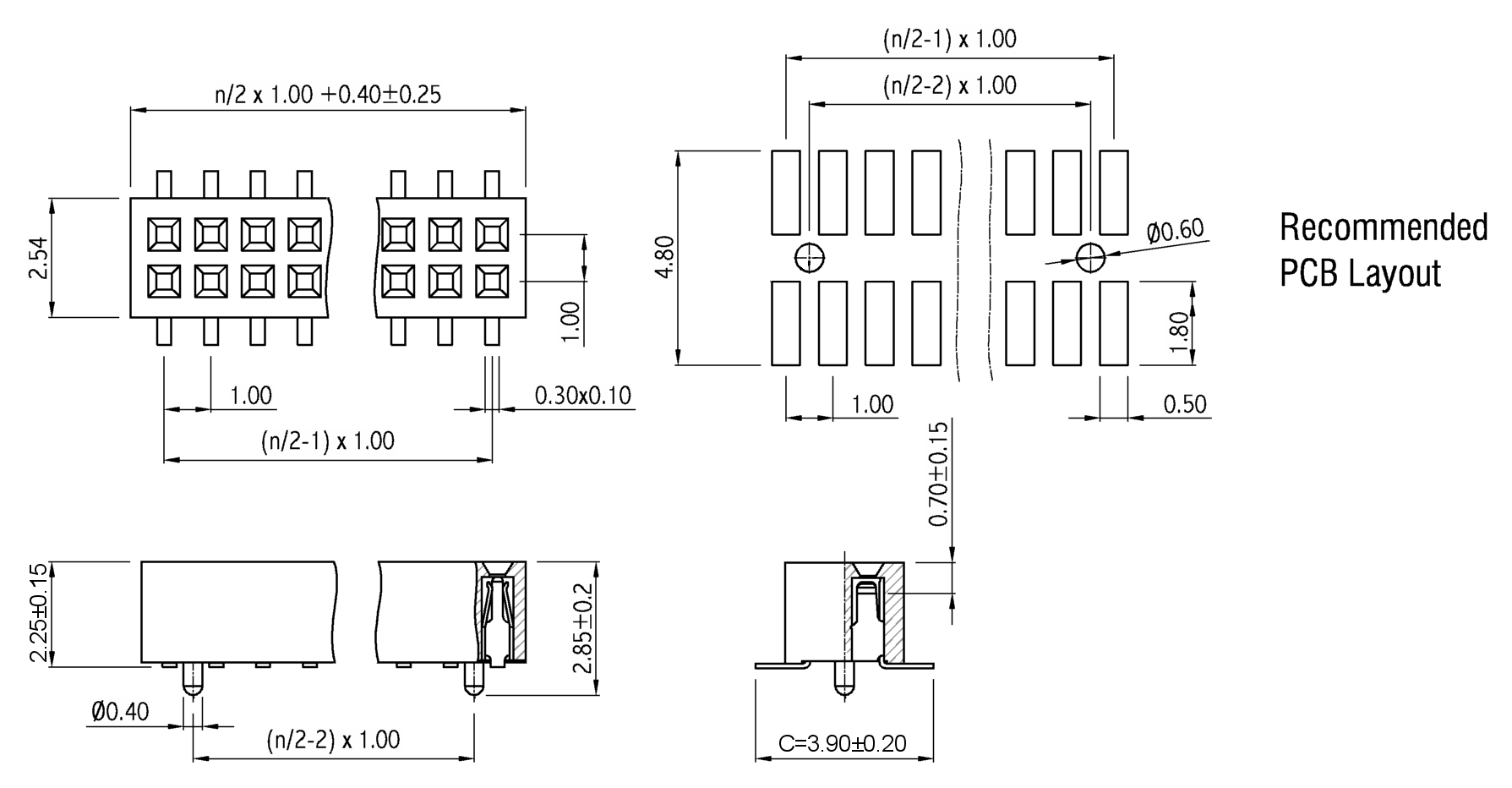

W+P PRODUCTS Zeichnung

Select the desired configuration:

Series
Please select 1 option
7091
Contacts
Please select 1 option
010-100 Double row
Profile
Please select 1 option
30 2.25mm, top entry
Plating
Please select 1 option
00 Gold plated
Locating Pegs
Please select 1 option
00 W/o loc. pegs
10 With loc. pegs
Packaging
Please select 1 option
ST In tubes w/o Pick&Place-Pads
PPST In tubes with P&P-Pads
PPTR Tape & Reel with P&P-Pads
FST In tubes with P&P-Film Pads
FTR Tape & Reel with Film Pads
Add to inquiry basket
Einsteckkräfte max. 1,02 N / Kontakt beim 1. Stecken.
Mating forces max. 1.02 N / contact during 1st mate.
