7131

SMT Female Headers, 1.27mm Pitch, Side Entry, Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Phosphor bronze
Contact Surface Acc. to options (see below), over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing Reflow soldering 260 °C / 10sec

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
7131
Contacts
Please select 1 option
04-80 Double row
Plating
Please select 1 option
00 Gold plated
Locating Pegs
Please select 1 option
00 W/o loc. pegs
10 With loc. pegs
Packaging
Please select 1 option
ST In tubes
TR Tape & Reel
Add to inquiry basket

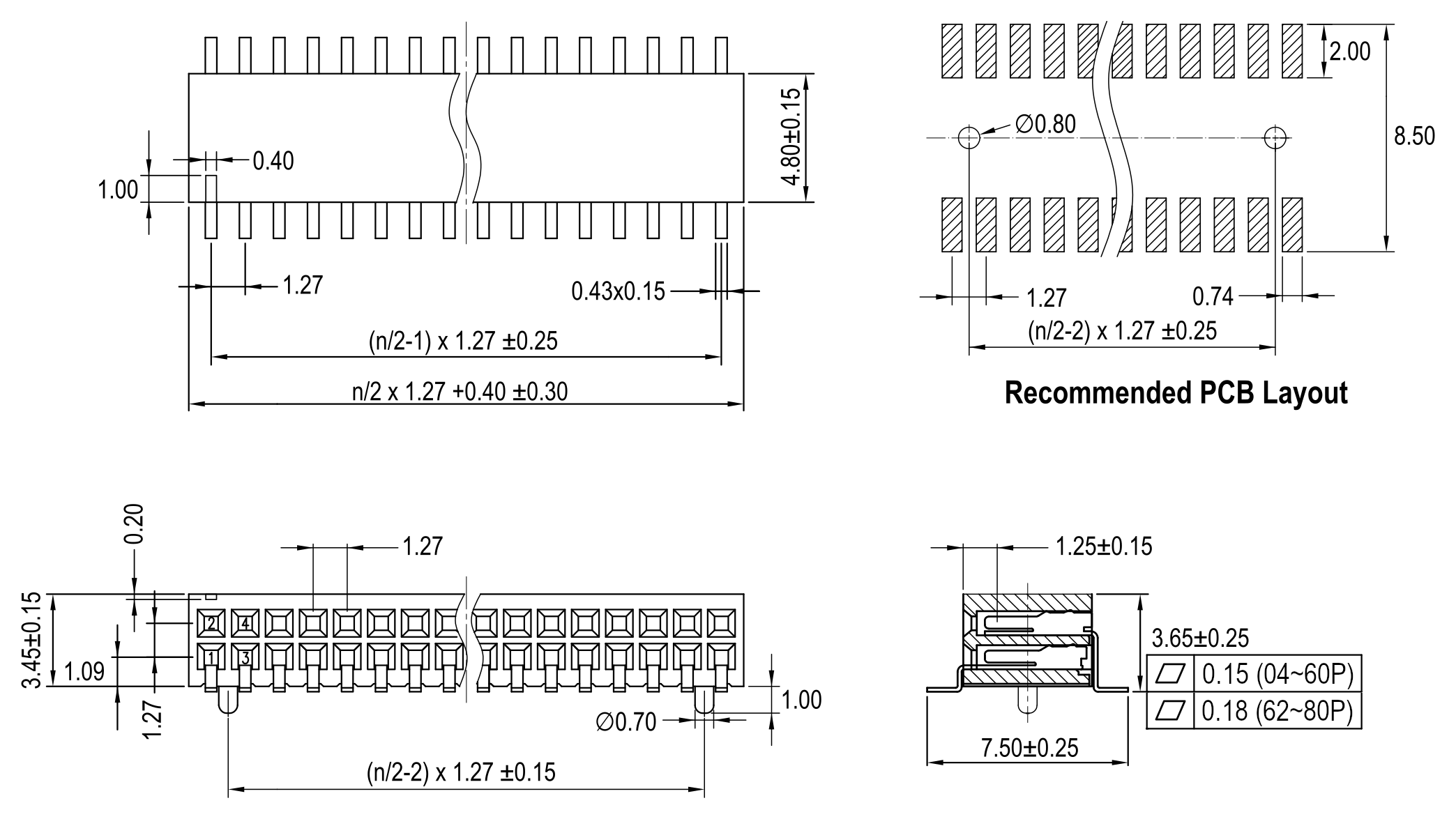

Technical Information
