7852

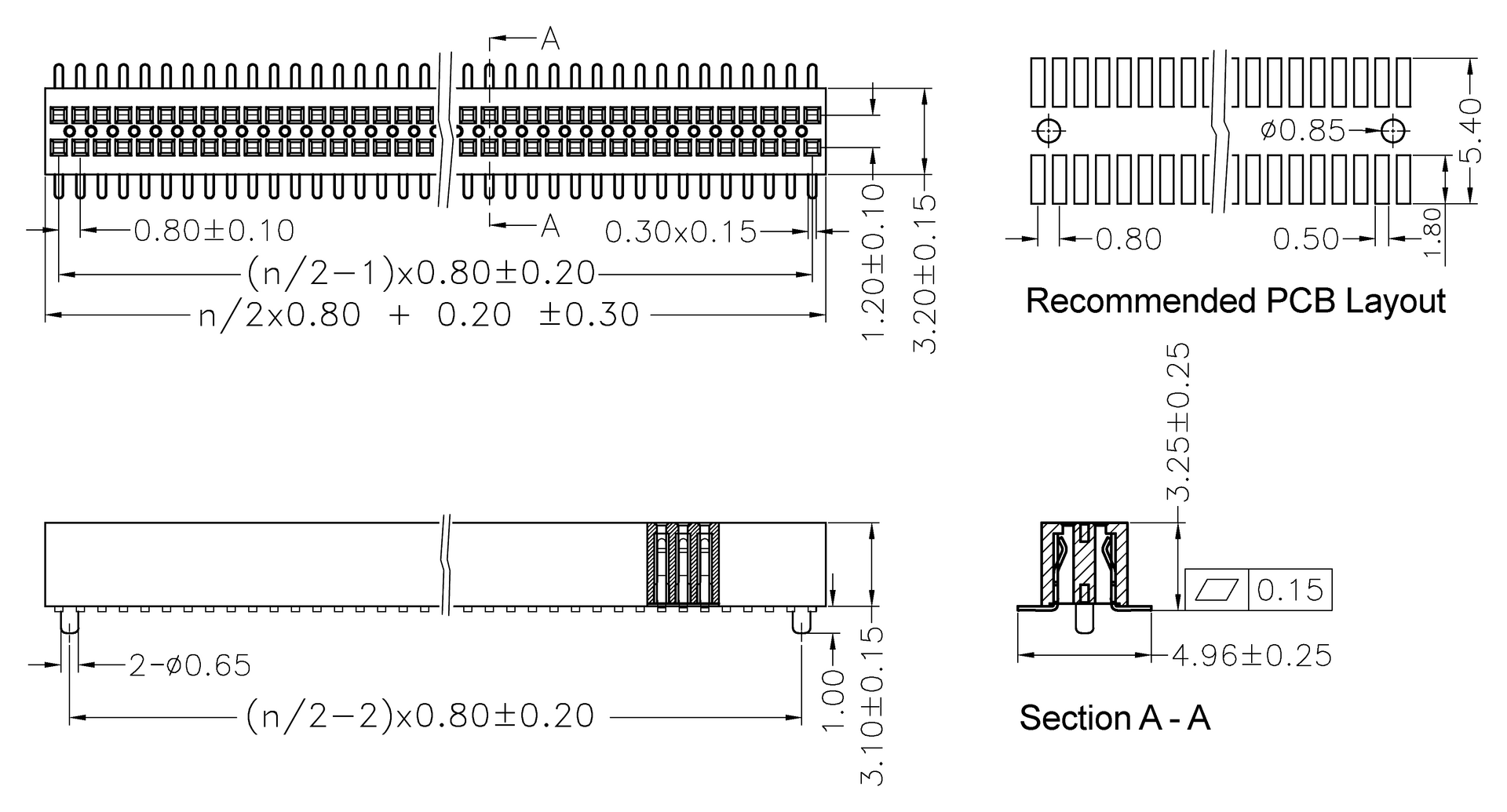

SMT Female Headers, 0.80x1.20mm Pitch, Vertical, Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Acc. to plating options, over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 0,75 A
Temperature Range -40 °C ... +105 °C
Processing Reflow soldering

Downloads

Data Sheet download

Federkontakte für Vierkantstifte 0,30mm.
Beam contacts accept 0.30mm square pins.
Passende Stiftleisten:
Compatible Pin Headers:
Vierkantstifte 0.3mm / □ 0.3mm Pin Header

Configure your product

Select the desired configuration:

Series
Please select 1 option
7852
Contacts
Please select 1 option
006-100
Plating
Please select 1 option
00 Gold plated
Locating Pegs
Please select 1 option
00 W/o loc. pegs
10 With loc. pegs (min. 10 contacts)
Packaging
Please select 1 option
ST In tubes w/o Pick&Place-Pads
PPST In tubes with Metal-Pads
PPTR Tape & Reel with Metal-Pads
