Technical Data
Contact Resistance < 30 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC
Voltage Rating 30 V RMS
Current Rating 1,5 A at 25 °C
Temperature Range 0 °C ... +70 °C
Downloads
Data Sheet download
Configure your product
UL 2725, doppelt geschirmt, 2*AWG28 + 2*AWG24
UL 2725, double shielded, 2*AWG28 + 2*AWG24
Veredelung 30µ\'\' (0,75µm) Au im Kontaktbereich, entspr. USB 2.0
Plating 30µ\'\' (0.75µm) Au in contact area, according to USB 2.0
UL 2725, double shielded, 2*AWG28 + 2*AWG24
Veredelung 30µ\'\' (0,75µm) Au im Kontaktbereich, entspr. USB 2.0
Plating 30µ\'\' (0.75µm) Au in contact area, according to USB 2.0
Type 1: USB A male - USB A male

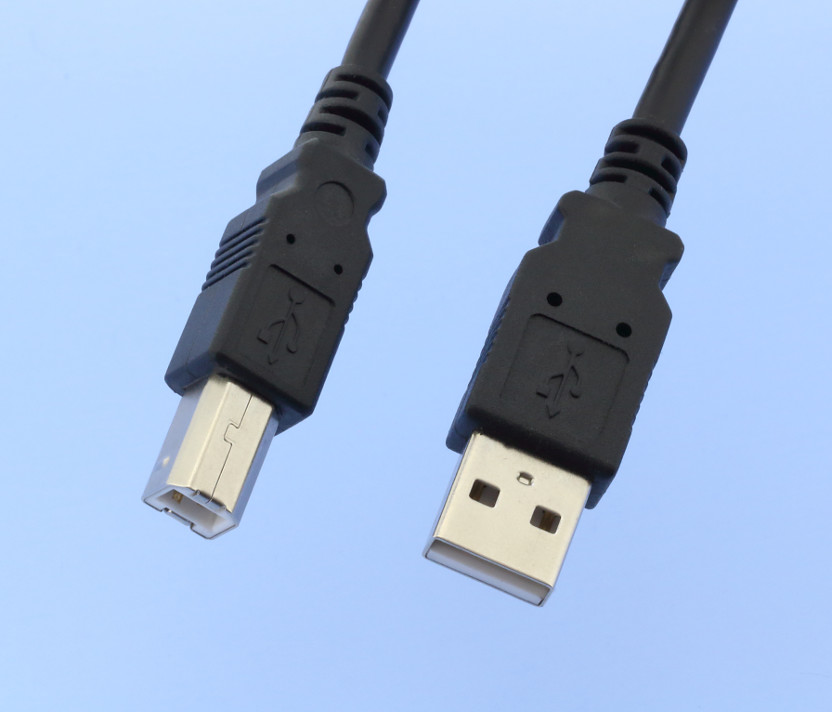

Type 2: USB A male - USB B male
Type 3: USB B male - USB B male
Type 4: USB A male - Mini-USB B male
Type 5: USB A male - USB A female
Type 7: USB B male - Micro-USB A male
Type 8: Micro-USB B male - Micro-USB B male
Type 9: USB A male - Micro-USB B male
Gehäusemaße / Housing Dimensions
| Type | L x W x H (Ref.) |
|---|---|
| USB A Male (Type 1,2,4,5) | 27.7 x 15.0 x 7.9mm |
| USB B Male (Type 2,3,7) | 26.7 x 11.4 x 10.5mm |
| USB A Female (Type 5) | 51.3 x 16.2 x 11.1mm |
| Mini USB B M (Type 4) | 18.6 x 11.6 x 9.0mm |
| Micro USB A M (Type 7,8) | 19.5 x 11.0 x 7.5mm |
