8320-3-1

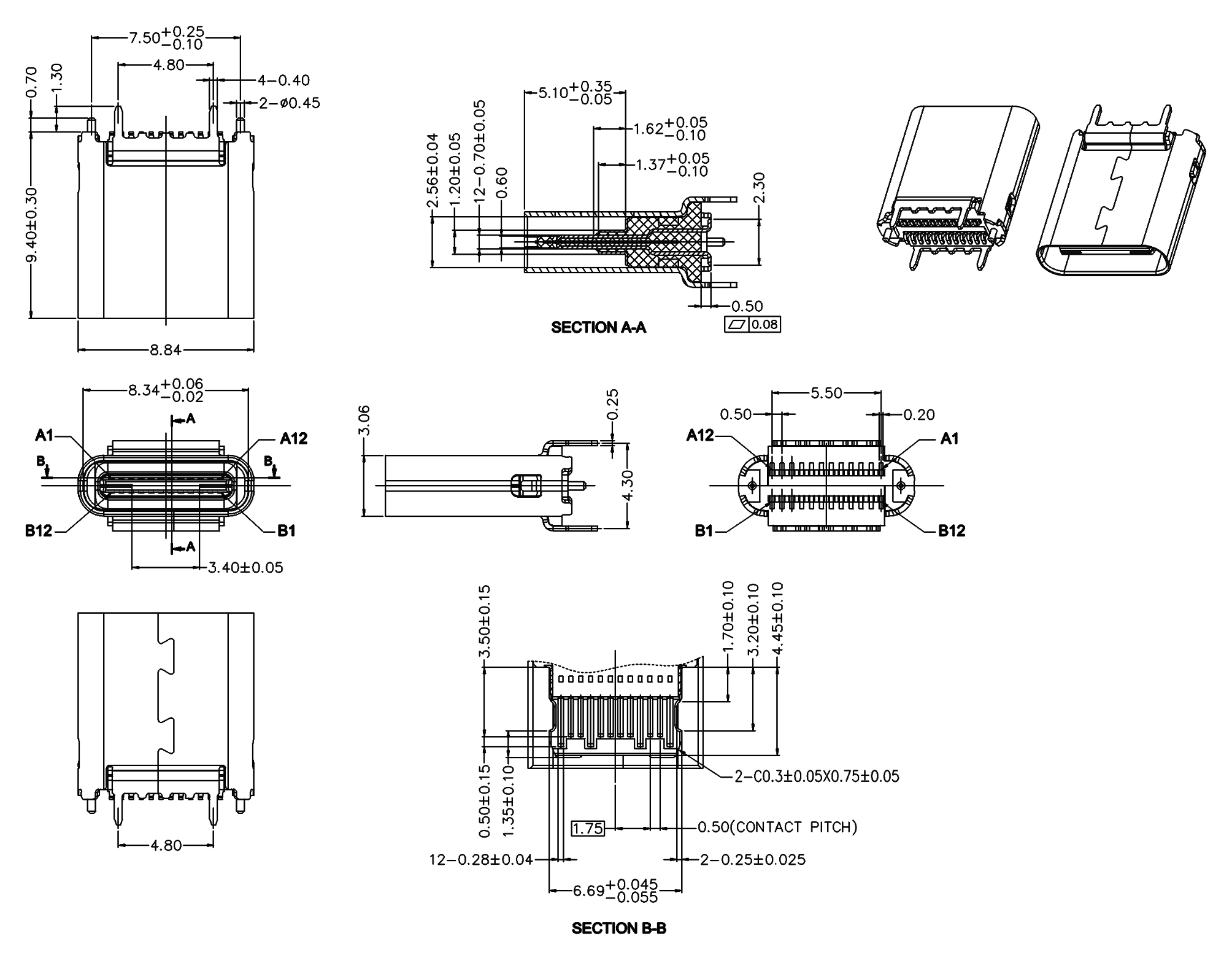

USB 3.1 Connectors, Type C, vertical

Go to configuration
Note

Technical Data

Shell Nickel plated steel
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au 30µ'' over Ni
Solder Side Plating Sn over Ni
Contact Resistance < 40 mΩ
Insulation Resistance > 100 MΩ
Test Voltage 100 V RMS
Current Rating 5 A VBUS, 1,25 A VCONN
Temperature Range -40 °C ... +85 °C

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
8320
Type
3 CH = 5.06mm
Version
1 Type C vertical
Plating
80 Sel. Au 0,75µm / Sn
Package
PPTR Tape & Reel with Pick&Place-Pad
