8410

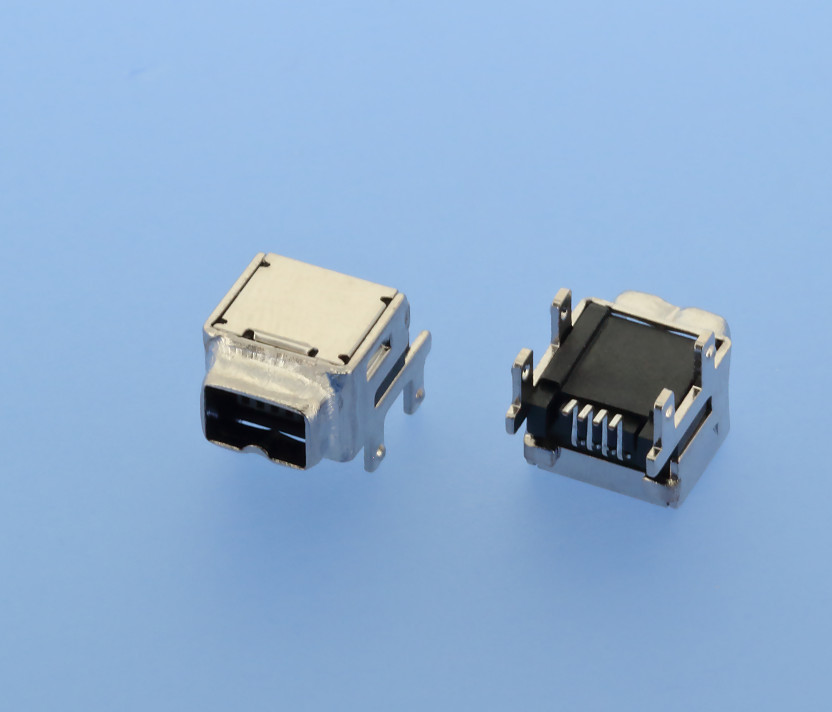

SMT IEEE 1394 Connectors, Horizontal

Go to configuration
Note

Technical Data

Shell Front shell: Tin plated steel
Rear Shell: Tin plated brass
Color Black
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Gold over nickel (see options below)
Solder Side Plating Tin plated over nickel
Contact Resistance < 30 mΩ
Insulation Resistance > 500 MΩ
Test Voltage 500 V AC
Voltage Rating 50 V AC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing Reflow soldering

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
8410
Contacts
Please select 1 option
04
Type
Please select 1 option
1 Horizontal
Plating
Please select 1 option
80 Sel. Au 0,75µm / Sn
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
8410
Contacts
Please select 1 option
06
Type
Please select 1 option
1 Horizontal
Plating
Please select 1 option
80 Sel. Au 0,75µm / Sn
Add to inquiry basket
