9633

SMT Pin Headers 2,54mm Pitch, Horizontal, Single Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.635mm square pin, copper alloy
Contact Surface Acc. to options (see below), over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1000 V RMS
Current Rating 3 A
Temperature Range -55 °C ... +105 °C
Processing Reflow soldering 250 °C / 10sec

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
9633
Contacts
Please select 1 option
03-20 Single row
Type
Please select 1 option
1 Type A

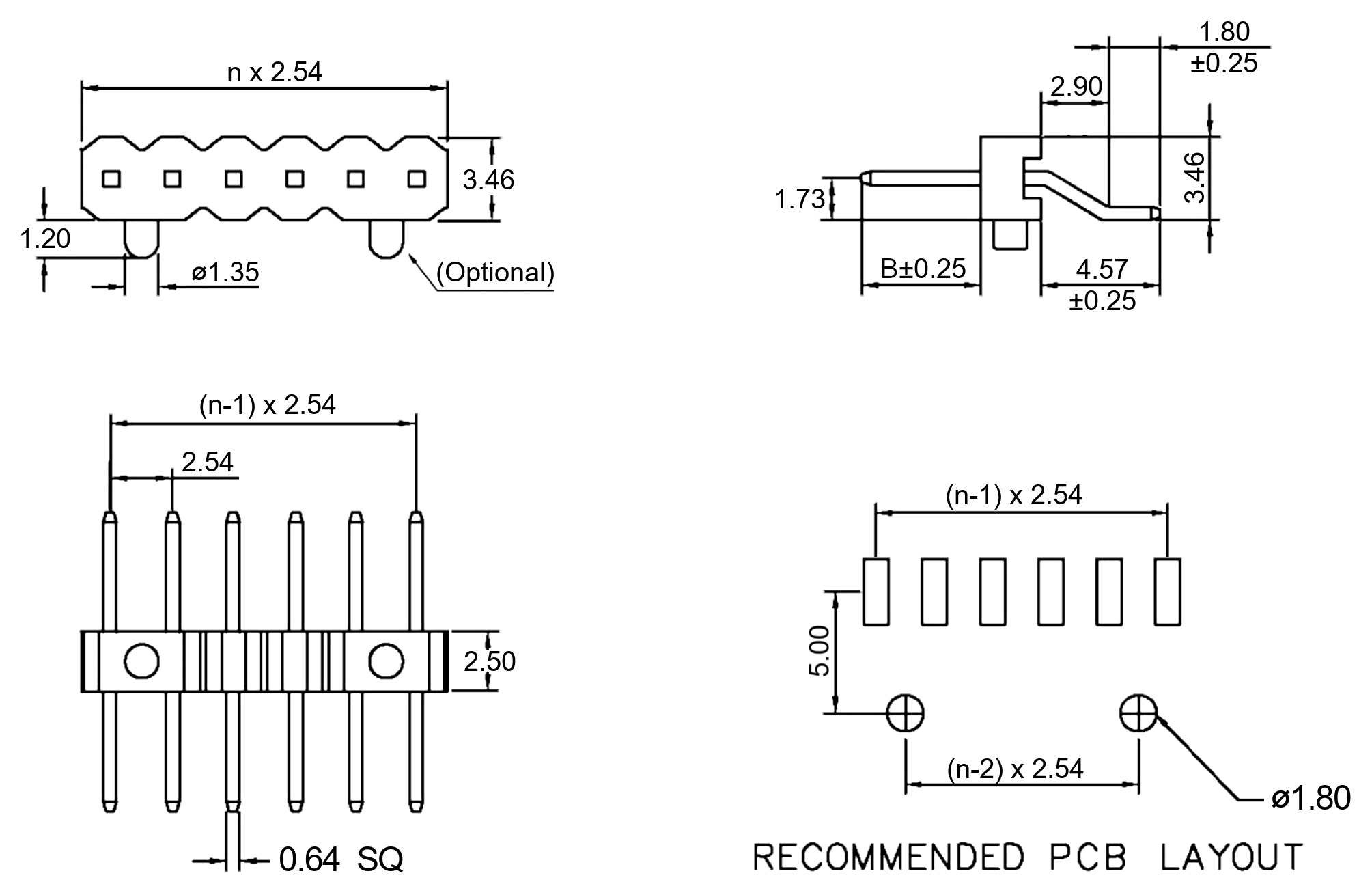

Dimensions
Please select 1 option
13 B=3.05mm
14 B=5.84mm
15 B=8.13mm
16 B=10.67mm
99- Customer-specific
Plating
Please select 1 option
00 Gold-plated
Locating Pegs
Please select 1 option
00 W/o locating pegs
10 With locating pegs
Packaging
Please select 1 option
ST In tubes w/o Pick&Place-Pads
PPST In tubes with PP-Pads
PPTR Tape&Reel with PP-Pads
