138PF

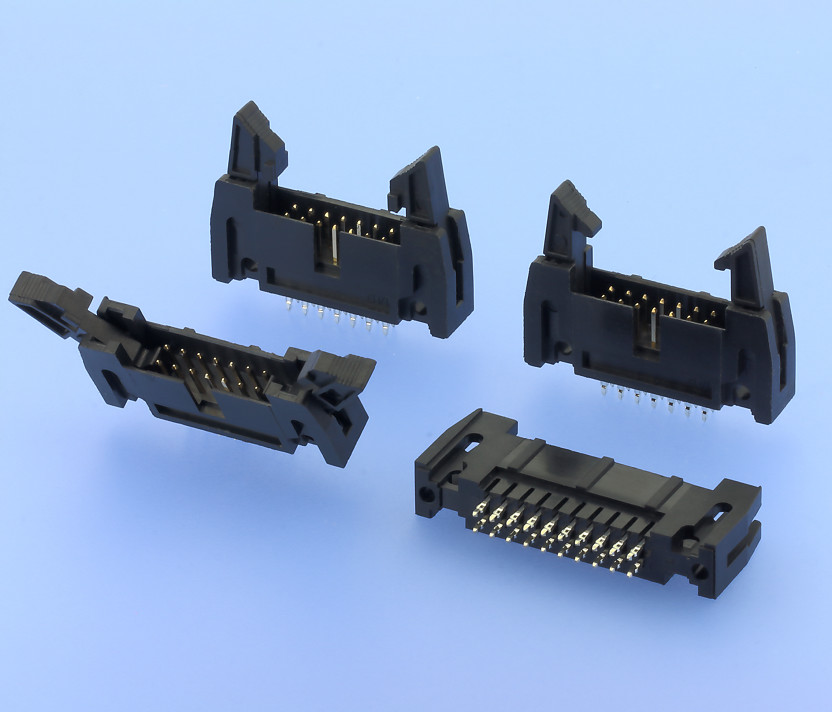

Box Headers with Latches, 2.54mm Pitch, Press-Fit

Note

Shell Thermoplastic, rated UL94 V-0

Contact Material Square pin 0.635mm, copper alloy

Contact Surface Acc. to options (see below), over Ni

Contact Resistance < 20 mΩ

Insulation Resistance > 1000 MΩ

Test Voltage 500 V AC

Voltage Rating 250 V AC

Current Rating 3 A

Temperature Range -40 °C ... +105 °C

Processing Press-Fit

Data Sheet download

Einpressen über Stiftspitzen.
Press-in over pin tips.

Einpresszone s. Tech. Informationen.
See technical Information for PressFit zones.

Serie

138PF

Contacts

10/14/16/20/26

34/40/50/60/64

Latches

00 W/o latches

10 Short latches

20 Long latches (for mating connectors with strain relief)

Plating

00 Gold plated

60 Au/Sn
