182

IC Headers, 2.54mm Pitch – 4.2mm Profile

Go to configuration
Note

Technical Data

Case/Cover/Actuator Thermoplastic, rated UL94 V-0
Contact Material Sleeve: screw machined brass
Clip: 4-Finger-Clip, Beryllium-Copper
Contact Surface Acc. to options (see below), over Ni
RoHS Exemptions 6a-I / 6c 6c; Option -LF21 w/o RoHS-Exemption
Contact Resistance < 10 mΩ
Insulation Resistance > 1000 MΩ
Withstanding Voltage 1 kV RMS
Voltage Rating 100 V RMS / 150 V DC
Current Rating 1 A
Temperature Range -55 °C ... +125 °C
Processing Wave soldering

Downloads

Data Sheet download

Für Rundstifte Ø0,40-0,56mm
oder Vierkantstifte 0,25x0,45mm.
For Ø0.40-0.56mm round pins
or 0.25x0.45mm rectangular pins.

Configure your product

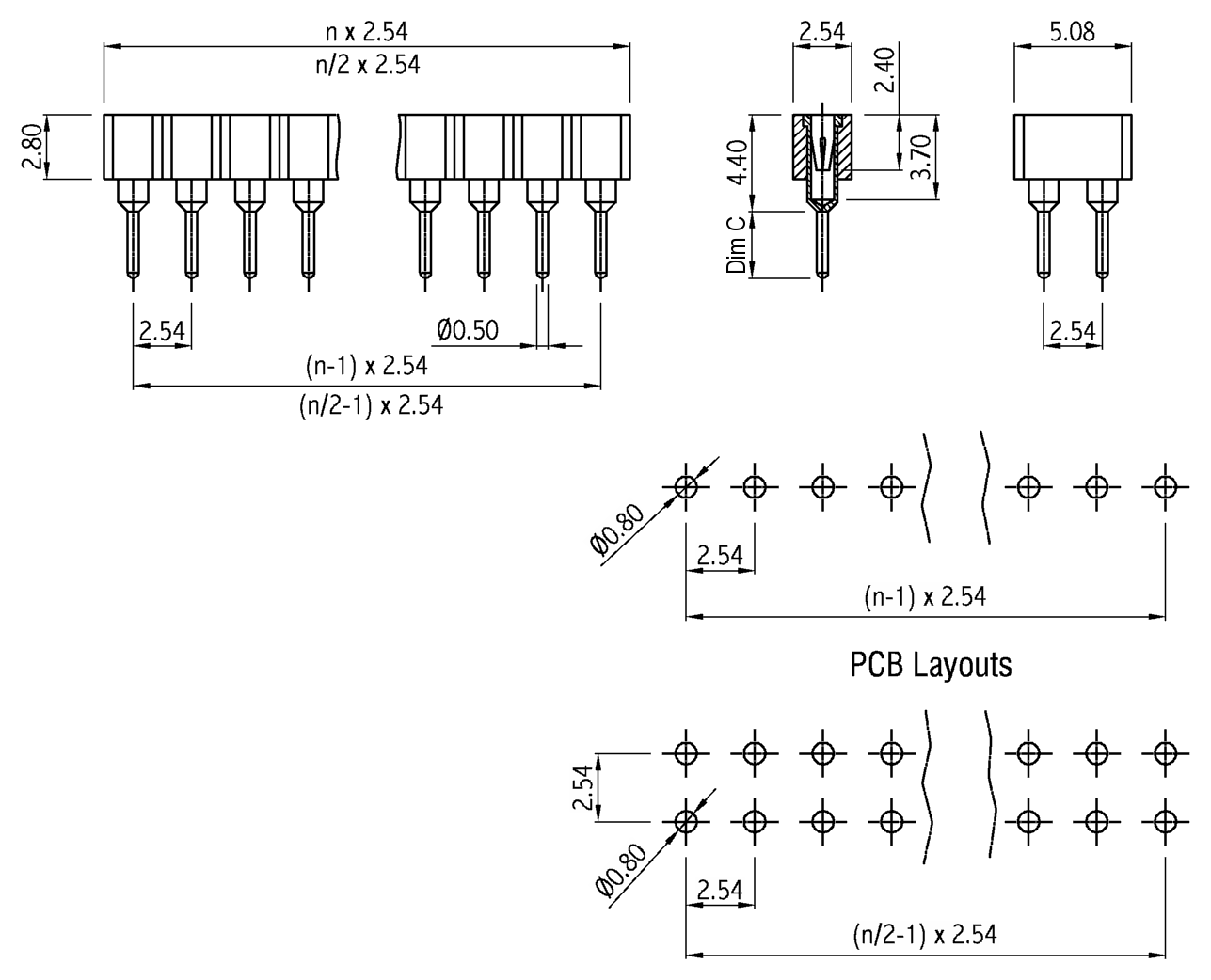

W+P PRODUCTS Zeichnung

Select the desired configuration:

Series
Please select 1 option
182 IC-Strip
Contacts
Please select 1 option
01-64 Single row
02-64 Double row
Rows
Please select 1 option
1 Single row
2 Double row
Sleeve Plating
Please select 1 option
50 Tin plated (Standard)
Clip Plating
Please select 1 option
00 Au flash
10 Au 0,25µm (Option)
30 Au 0,75µm
Dim C
Please select 1 option
[ ] C=2.90mm
41 C=4.10mm
50 C=5.00mm
55 C=5.45mm
70 C=7.00mm
Leadfree (Optional)
Please select 0 to 1 option
LF21 On request leadfree
without RoHS
exemption 6c
