46-1380

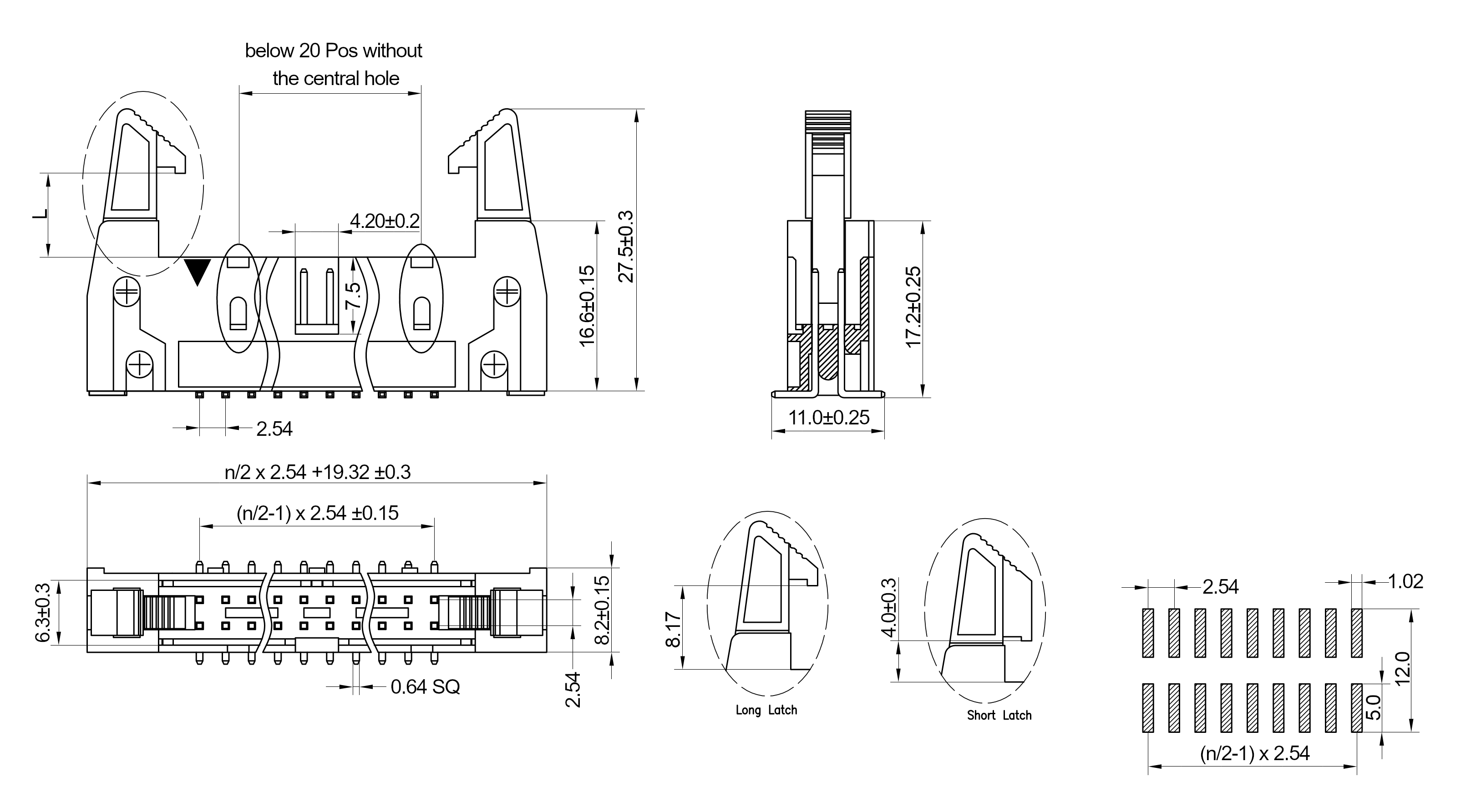

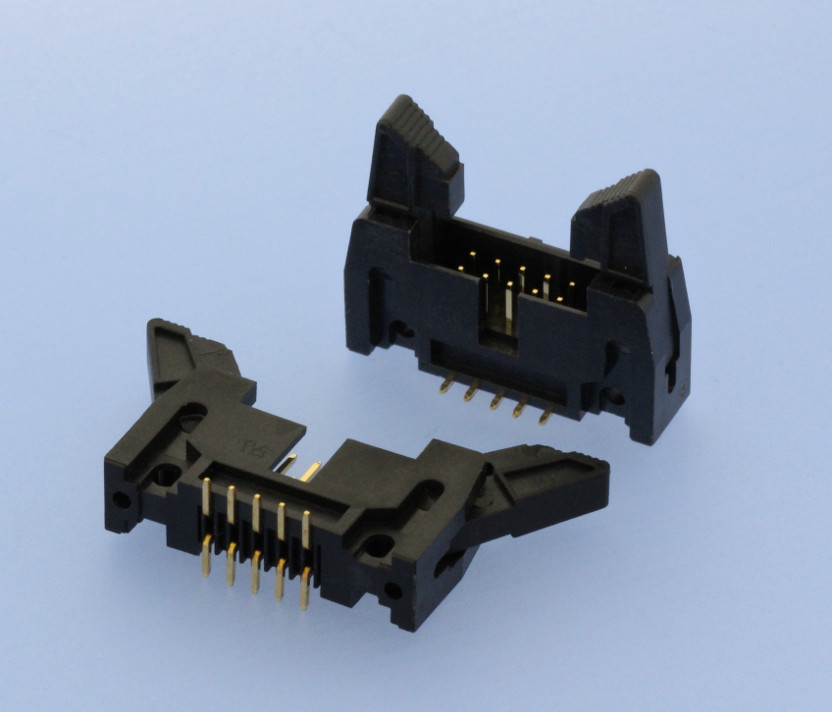

SMT Box Headers with Latches, 2.54mm Pitch, Vertical

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance 20 mΩ max.
Insulation Resistance 1000 MΩ min.
Test Voltage 1000 V AC/DC
Current Rating 3.0 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)

Downloads

Data Sheet download

Passende Gegenstecker Serie:
Compatible Connector Series:
141
Lange Hebel für Gegenstecker mit Zugentlastung
Long Latches for Mating Connectors with Strain Relief

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-1380
Contacts
Please select 1 option
006-040
Latches
Please select 1 option
00 W/o latches
10 Short latches
20 Long latches
Plating
Please select 1 option
00 Gold plated
Packaging
Please select 1 option
00 In the blister
ST In tubes
PPST In tubes with P&P-Pads
