46-157 Economy Version

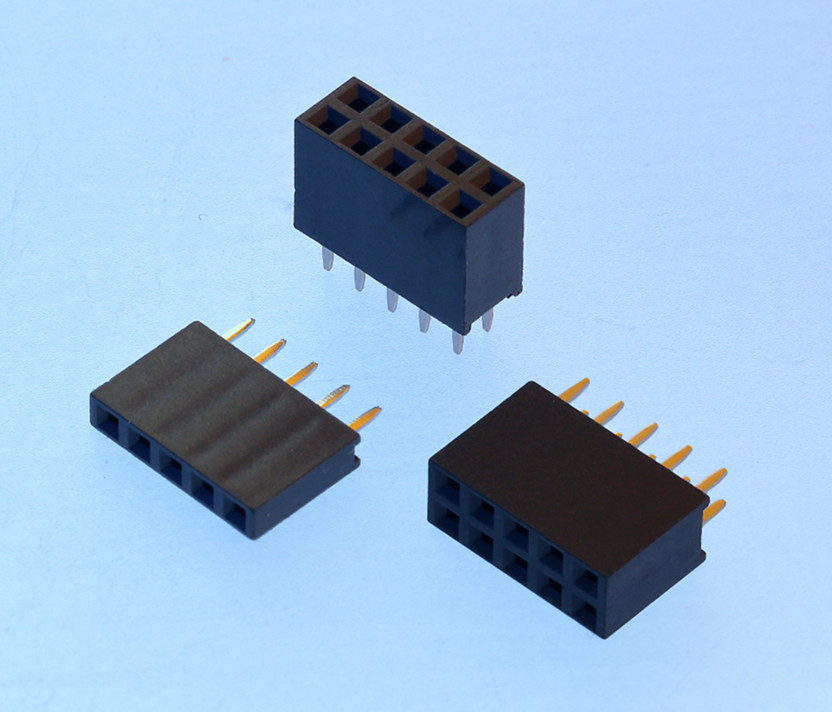

Female Headers, 2.54mm Pitch, Straight, 1/2/3 Rows – 8.5mm Profile
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance 20 mΩ max.
Insulation Resistance 1000 MΩ min.
Test Voltage 1000 V AC/DC
Current Rating 3 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)
(260 °C for 10 seconds)
