46-159 Economy Version

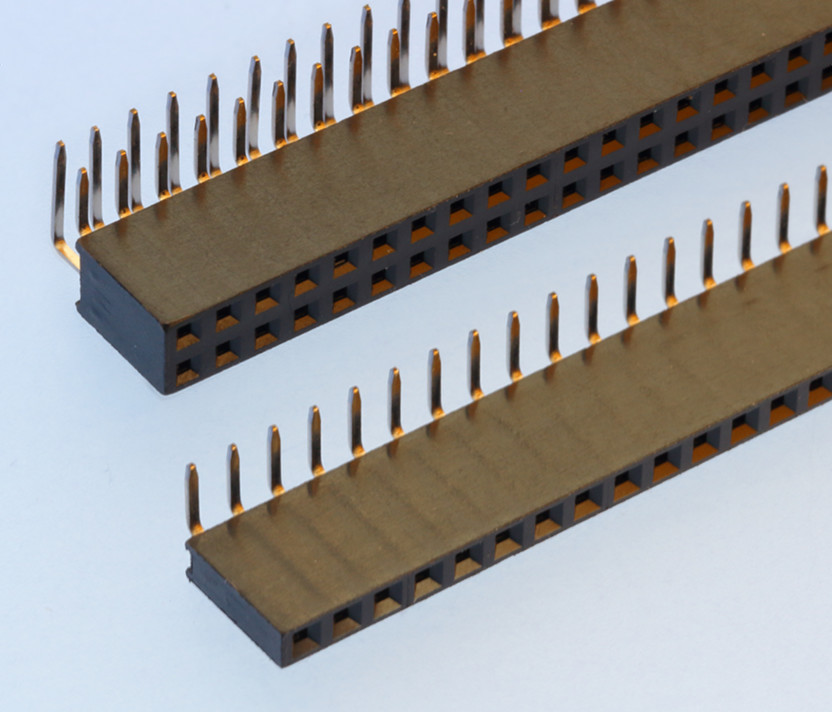

Female Headers, 2.54mm Pitch, Right-Angled, Single/Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1000 V AC/DC
Current Rating 3 A
Temperature Range -40 °C ~ +105 °C
Processing 260 °C for 10 sec. / 230 °C for 30~60 sec.

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-159
Contacts
Please select 1 option
02-30 Single row
04-50 Double row
Rows
Please select 1 option
1 Single row
2 Double row
Plating
Please select 1 option
00 Gold plated
Add to inquiry basket

Technical Information
