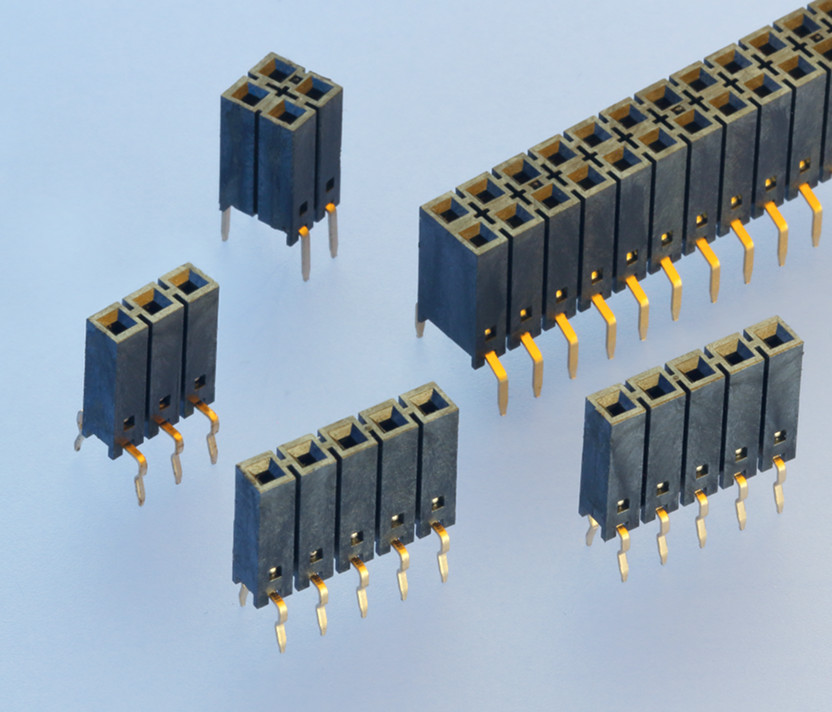

46-289 Economy Version
Female Headers, 2.54mm Pitch, Straight, Single / Double Row – 8.5mm Profile, Pass Through
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1000 V AC/DC
Current Rating 3 A
Temperature Range -40 °C ~ +105 °C
Processing 260 °C for 5 sec. / 230 °C for 30~60 sec.
Downloads
Data Sheet download
Configure your product
Doppelfederkontakte für Vierkantstifte 0,635mm.
Dual beam contacts accept 0.635mm square pins.
Dual beam contacts accept 0.635mm square pins.
