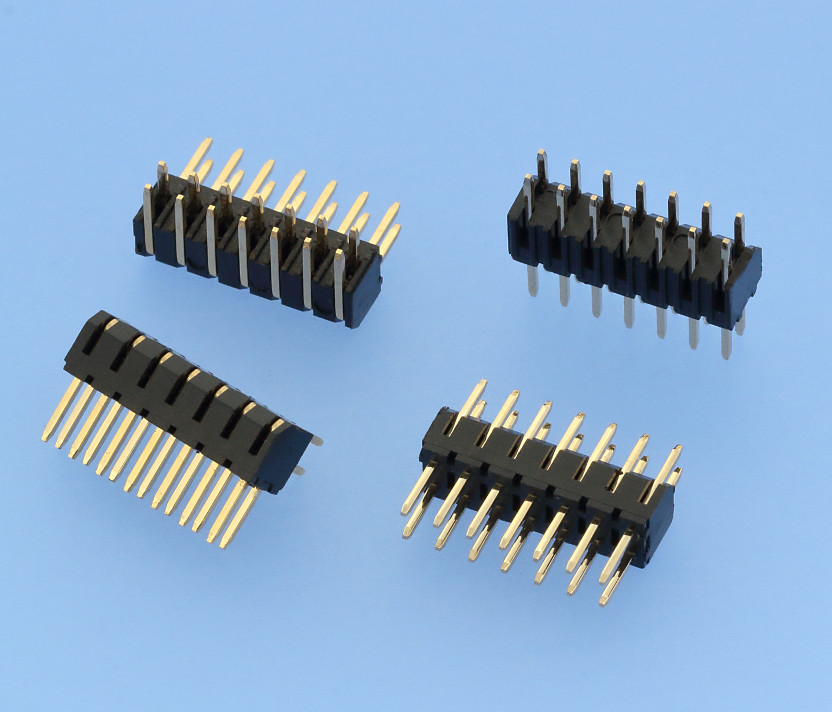

46-317 Economy Version

Pin Headers 2.00mm Pitch, Straight/Right-angled, Double Row - 4mm Profile

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 1.5 A
Temperature Range -40 °C ~ +105 °C
Processing 260 °C for 5 sec. / 230 °C for 30~60 sec.

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-317
Contacts
Please select 1 option
04-30 Double row
Type
Please select 1 option
20 Straight
21 Right-angled
Plating
Please select 1 option
00 Gold plated
