46-3498 Economy Version

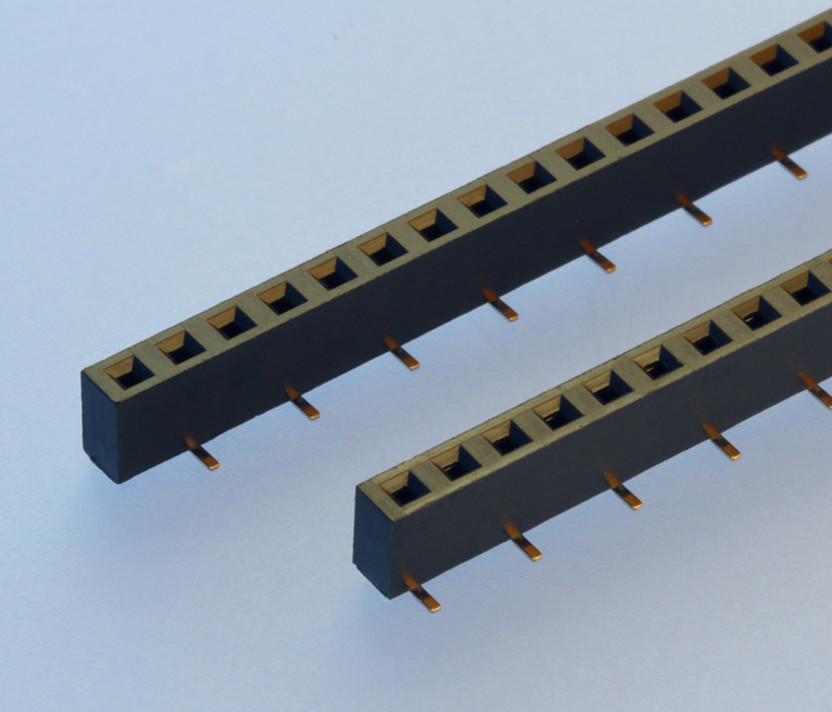

SMT Female Headers, 2.54mm Pitch, Vertical, Single Row – 5.0mm Profile, Pass Through
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1000 V AC/DC
Current Rating 3 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)
(260 °C for 10 seconds)
Downloads
Data Sheet download
