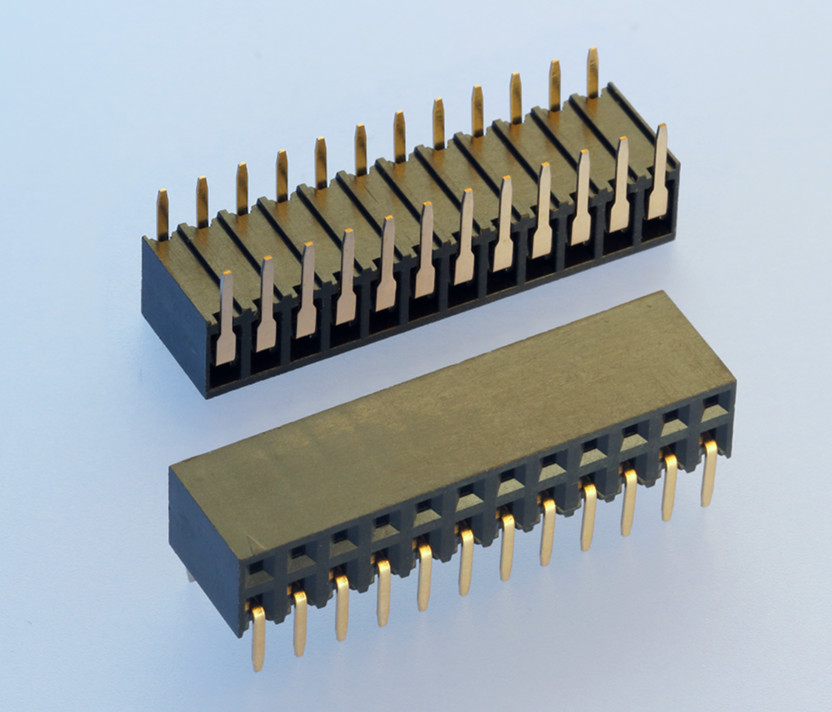

46-388 Economy Version

Stand-Off Female Headers, 2.54mm Pitch, Side Entry, Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Phosphor bronze
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1000 V AC/DC
Current Rating 3 A
Temperature Range -40 °C ~ +125 °C
Processing 260 °C for 10 sec. / 230 °C for 30~60 sec.

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-388
Contacts
Please select 1 option
08-70 Double row
Rows
Please select 1 option
2 Double row
Layout
Please select 1 option
1 D=7.87mm
Plating
Please select 1 option
00 Gold plated
Add to inquiry basket

Technical Information
