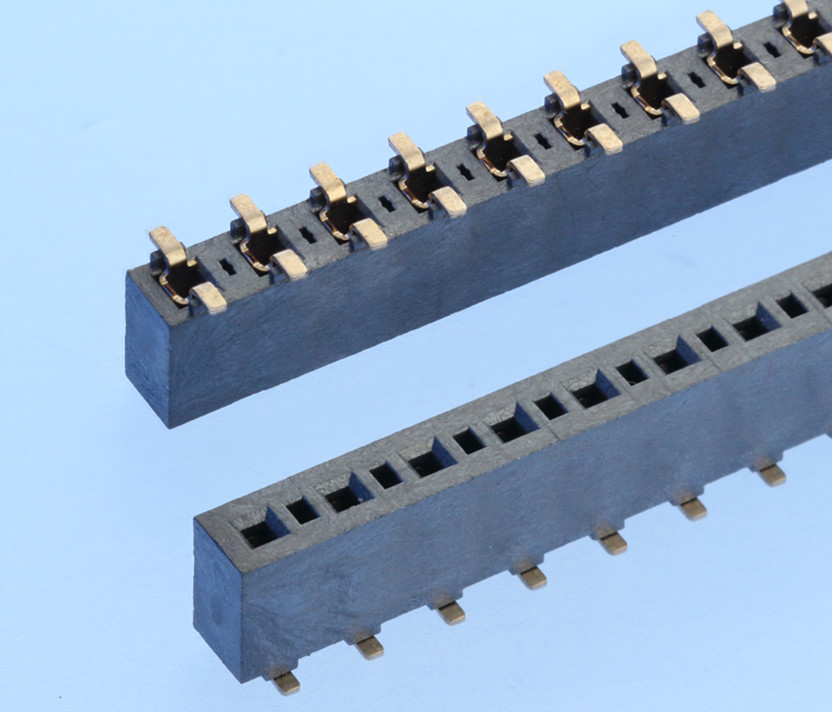

46-3950 Economy Version
SMT Female Headers, 5.08mm Pitch, Vertical – Power Contacts, Pass Through
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Acc. to plating options, over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1000 V AC/DC
Current Rating 7 A
Temperature Range -40 °C ~ +105 °C
Processing 260 °C for 10 sec. / 230 °C for 30~60 sec.
Downloads
Data Sheet download
Configure your product
