46-4160 Economy Version

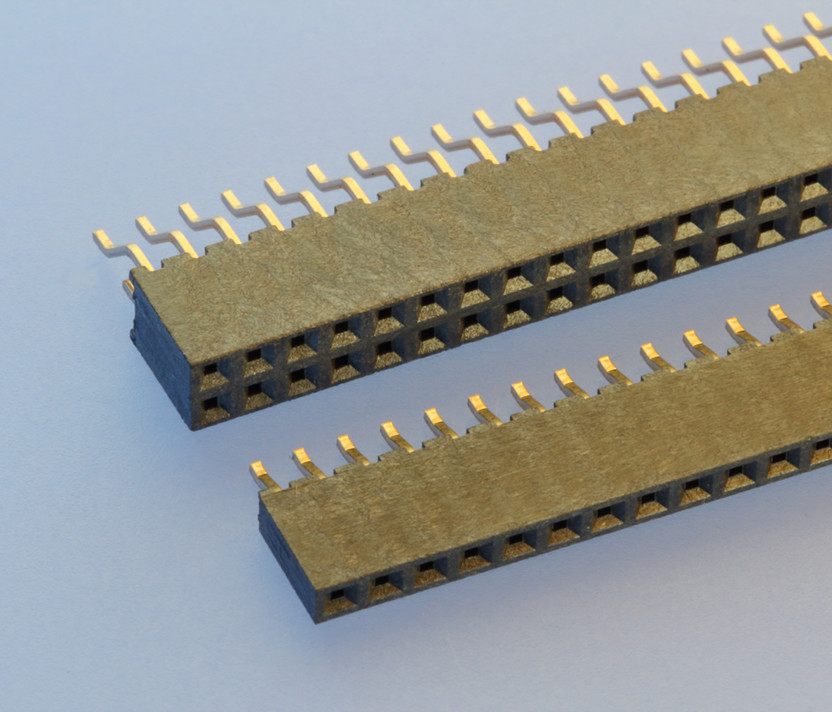

SMT Female Headers, 2.00mm Pitch, Horizontal, 1/2 Rows
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 2 A
Temperature Range -40 °C ... +105 °C
Processing Reflow 260 °C for 10 sec.
