46-532

Friction Lock Headers / Crimp Housings, 2.54mm Pitch, Straight/Right-Angled

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.64mm square pin, copper alloy
Wire Gauge AWG 30 ~ 24
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Withstanding Voltage 1500 V AC
Voltage Rating 250 V AC
Current Rating 3 A
Temperature Range -25 °C ... +85 °C
Processing Wave soldering

Downloads

Data Sheet download
3D Models
46-532-02-1.stp download 46-532-02-3-xx.stp download 46-532-02-4-xx.stp download 46-532-03-1.stp download
46-532-03-3-xx.stp download 46-532-03-4-xx.stp download 46-532-04-1.stp download 46-532-04-3-xx.stp download 46-532-04-4-xx.stp download 46-532-06-1.stp download 46-532-06-3-xx.stp download 46-532-06-4-xx.stp download
show all Note: Embedded 3D data may have tolerances.

Gegenstecker / Mating connectors: 46-5320

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-532
Contacts
Please select 1 option
01
Type
Please select 1 option
2 Crimp contacts
Plating
Please select 1 option
50 Sn
60 Sel. Au flash / Sn
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
46-532
Contacts
Please select 1 option
02-12
Type
Please select 1 option
1 Housing
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
46-532
Contacts
Please select 1 option
02-12
Type
Please select 1 option
3 Straight pin header
4 Right-angled pin header
Plating
Please select 1 option
00 Gold plated
Add to inquiry basket

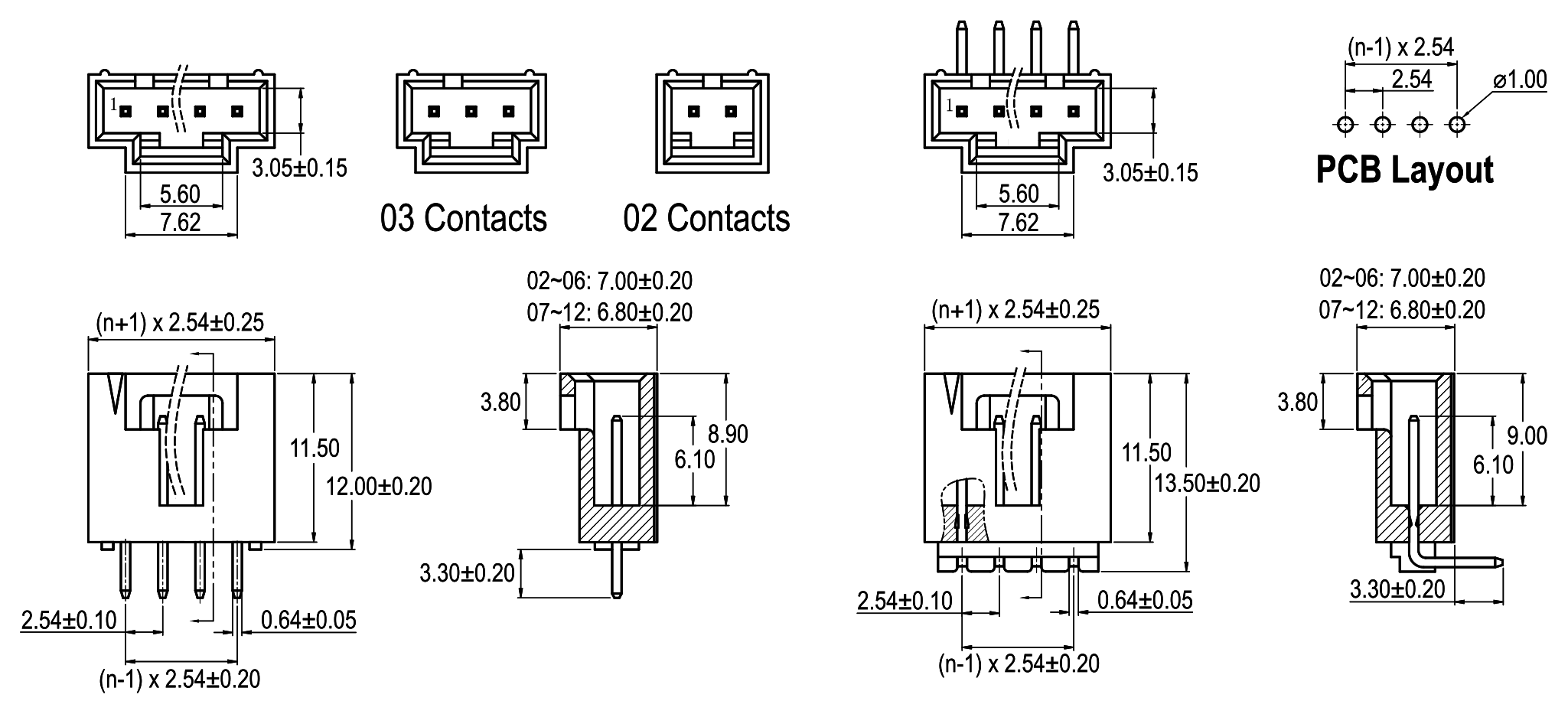

Technical Information
