46-583

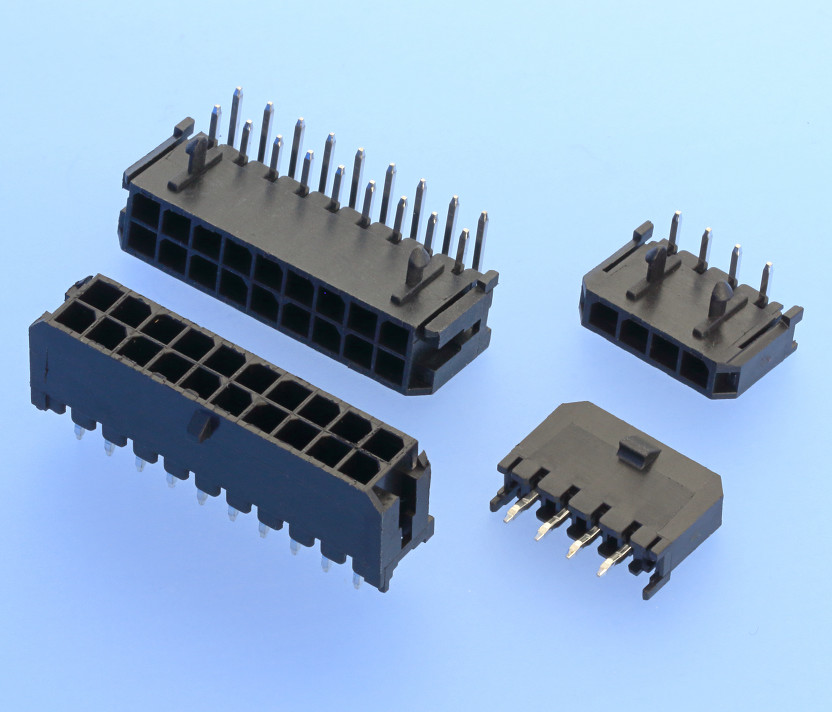

Friction Lock Headers, 3.00mm Pitch, Straight/Right-Angled, Single/Double Row
Go to configuration Note
Technical Data
Color Black
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy, 0.64mm square pin
Contact Surface Sn over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1.5 kV AC
Voltage Rating 250 V AC/DC
Current Rating 5 A AC/DC
Temperature Range -25 °C ... +85 °C
Processing Wave soldering
