46-605 Economy Version

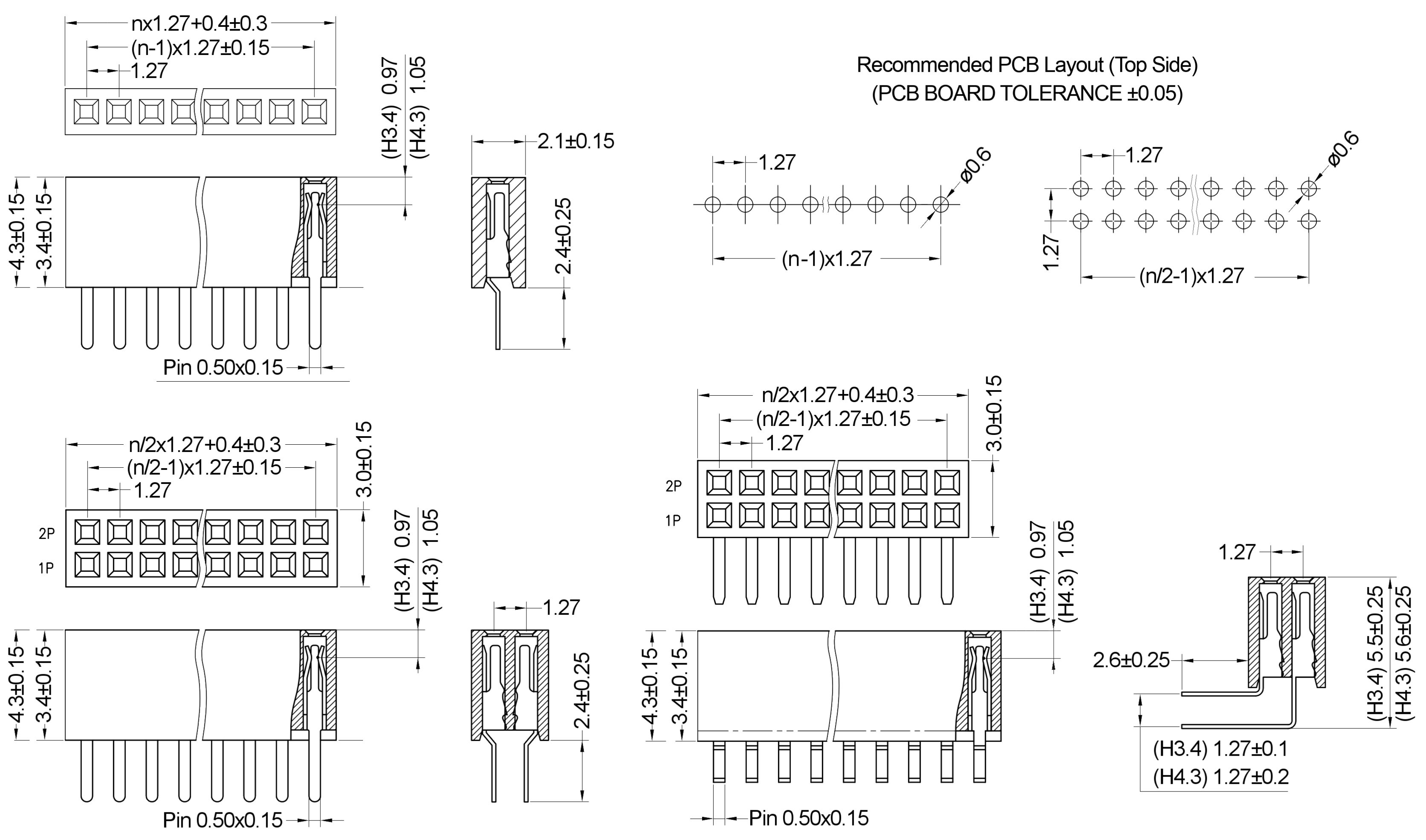

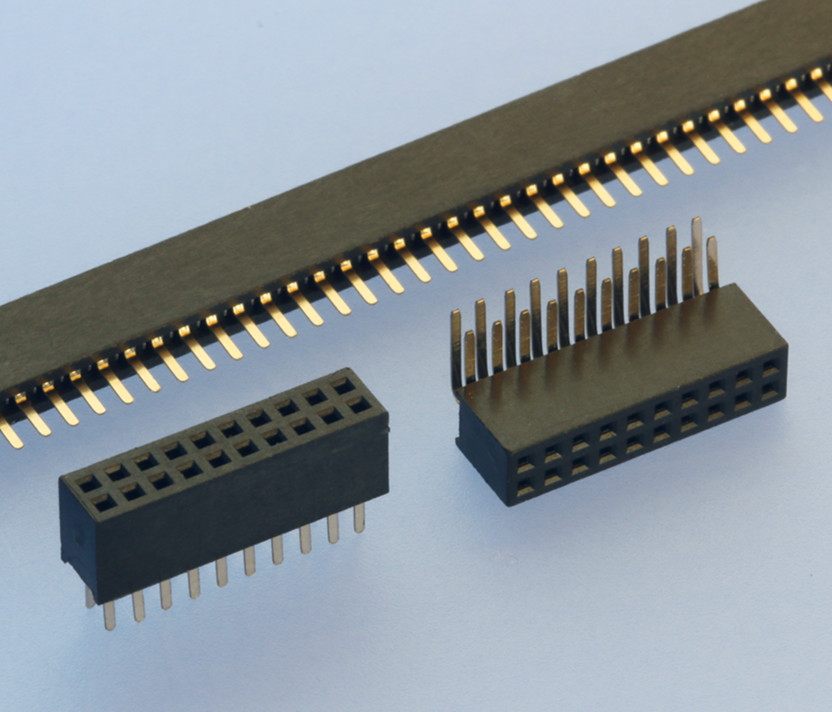

Female Headers, 1.27mm Pitch, Straight/Right-Angled – 3.4/4.3mm Profile
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)
(260 °C for 10 seconds)
