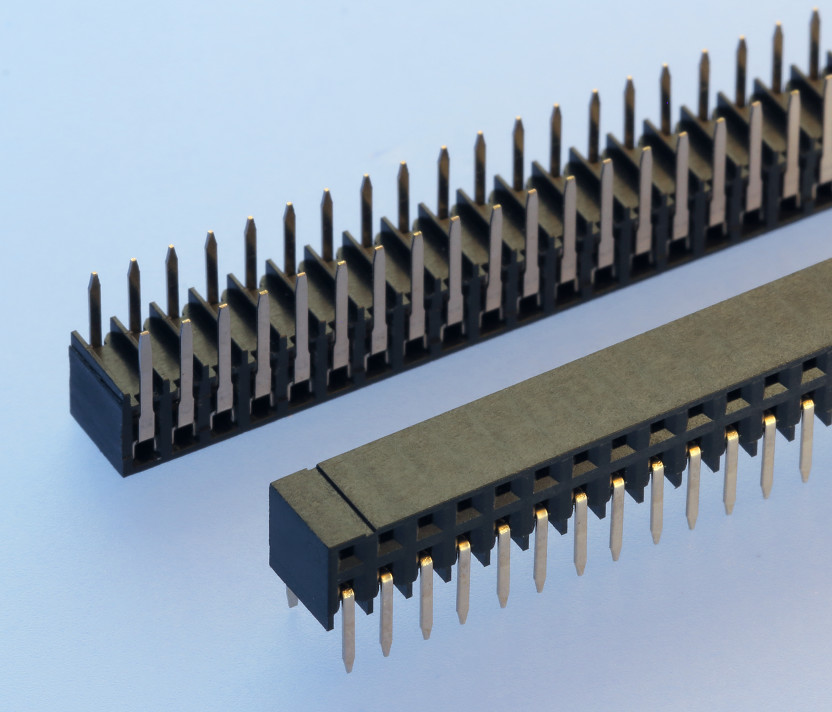

46-619 Economy Version
Female Headers, 2.00mm Pitch, Side Entry, Double Row
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 1.5 A
Temperature Range -40 °C ~ +105 °C
Processing 260 °C for 10 sec. / 230 °C for 30~60 sec.
