46-709 Economy Version

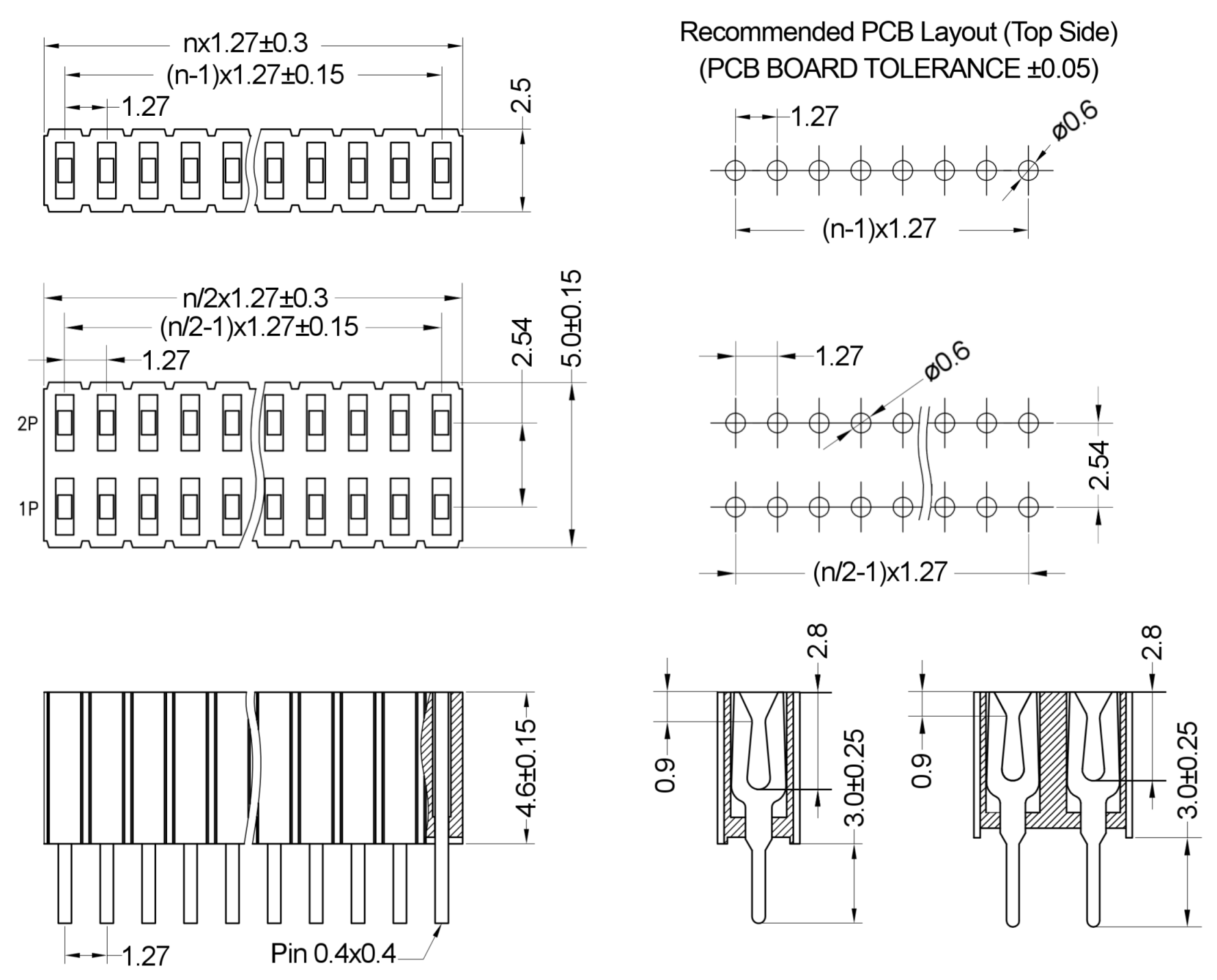

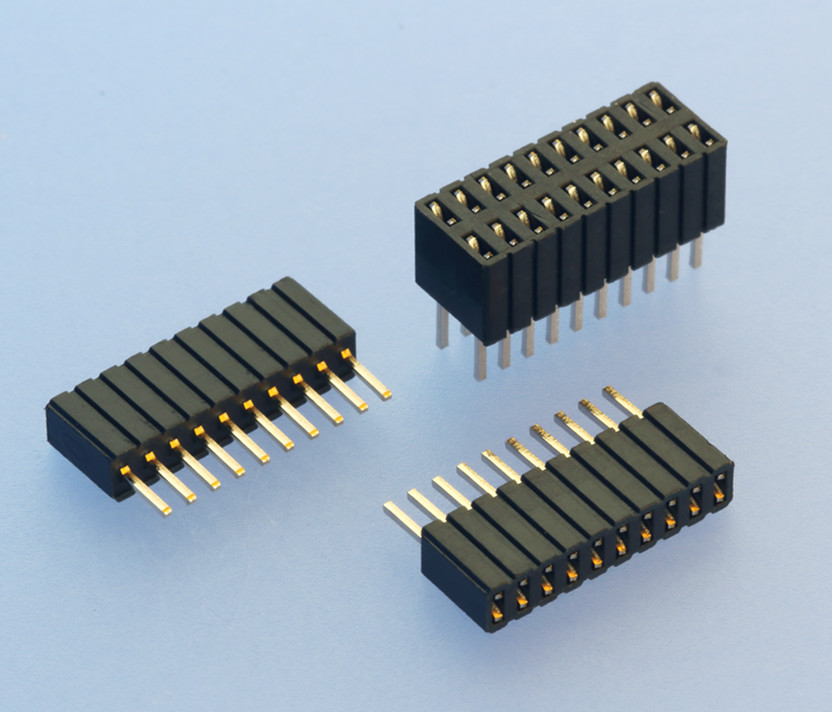

Female Headers, 1.27x2.54mm Pitch, Straight, Single/Double Row – 4.6mm Profile

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-709
Contacts
Please select 1 option
001-050 Single row
004-100 Double row
Rows
Please select 1 option
1 Single row
2 Double row
Plating
Please select 1 option
00 Gold plated
