46-7091

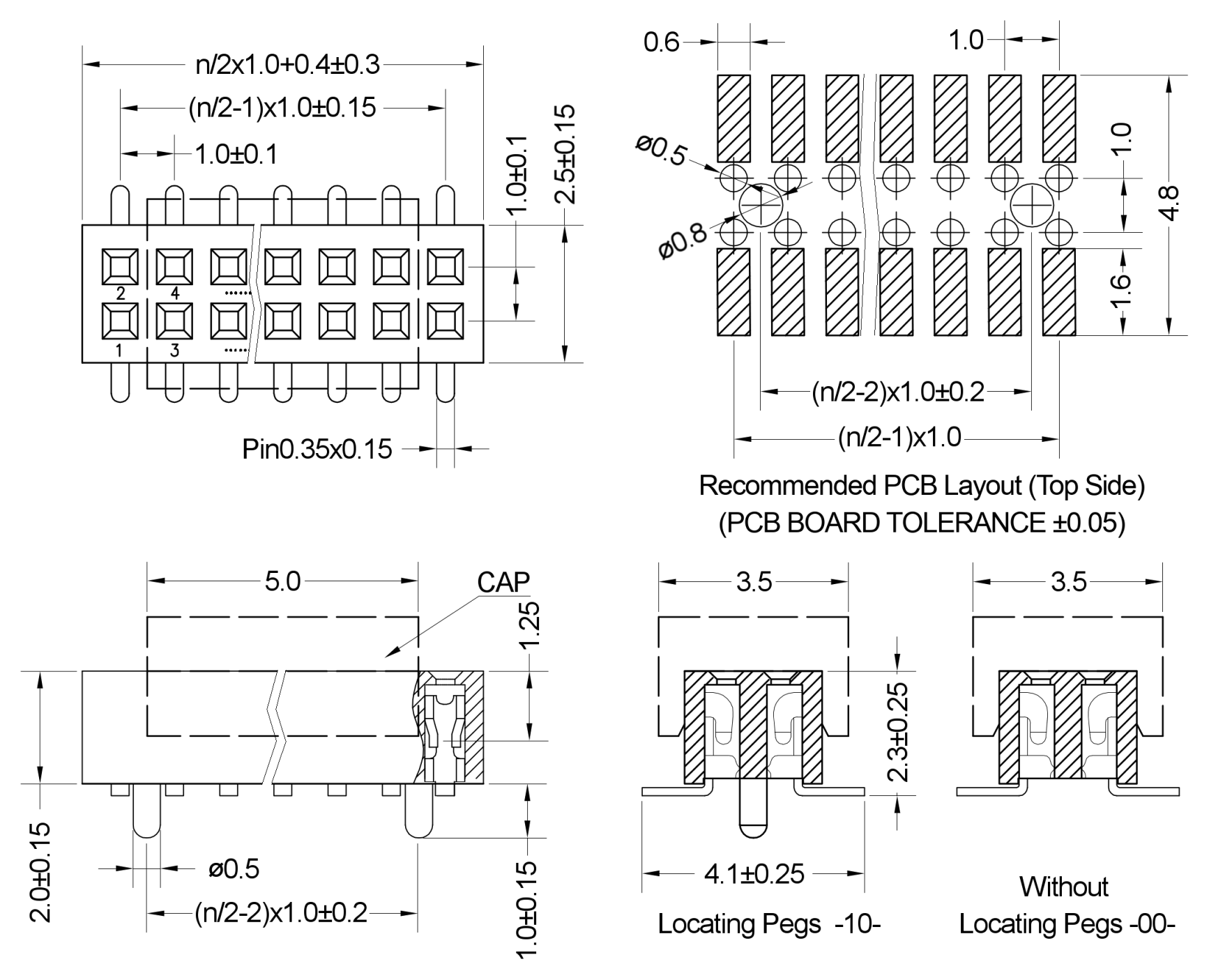

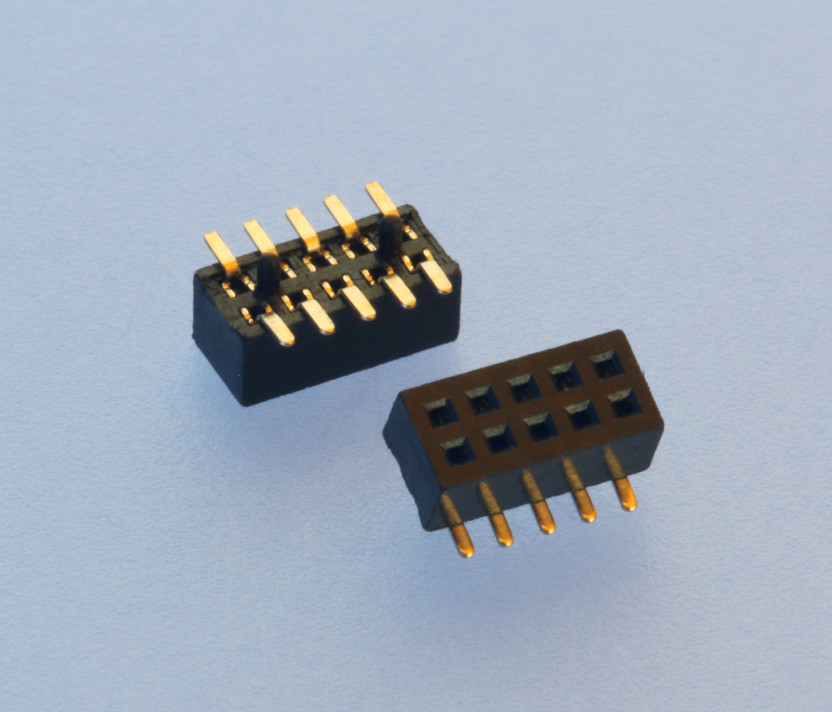

SMT Female Headers, 1.00mm Pitch, Vertical, Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 30 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 0.75 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-7091
Contacts
Please select 1 option
010-100 Double row
Profile
Please select 1 option
30 2.3mm, top entry
Plating
Please select 1 option
00 Gold plated
Locating Pegs
Please select 1 option
00 W/o loc.pegs
10 With loc.pegs
Packaging
Please select 1 option
ST In tubes w/o Pick&Place-Pads
PPST In tubes with Pick&Place-Pads
PPTR Tape & Reel with Pick&Place-Pads
FTR Tape & Reel with Film Pads
