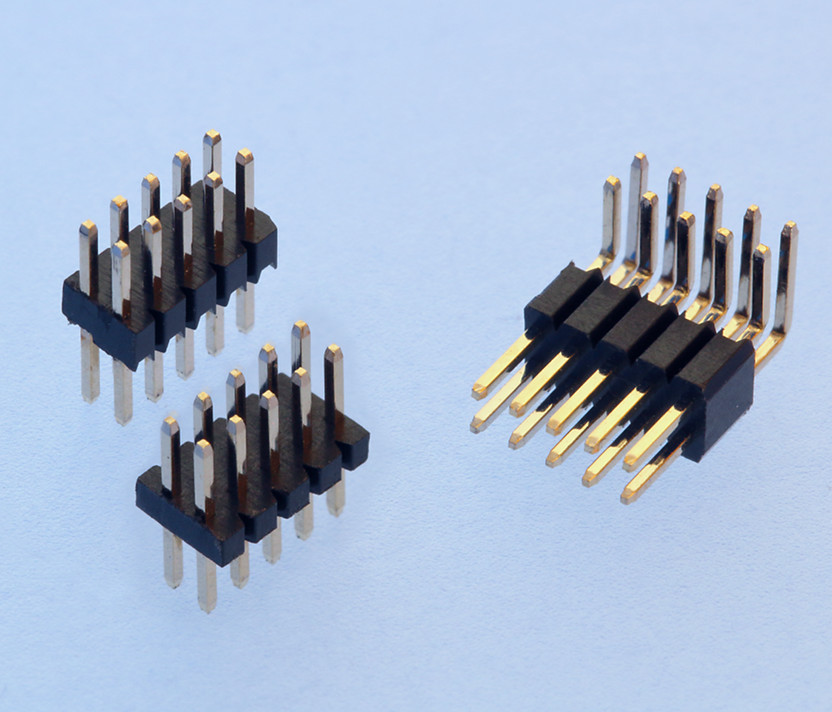

46-712 Economy Version
Pin Headers, 1.27mm Pitch, Double Row – 1.0 / 1.7 / 2.5mm Insulator Body
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 1 A
Temperature Range -40 °C ~ +105 °C
Processing 260 °C for 10 sec. / 230 °C for 30~60 sec.
