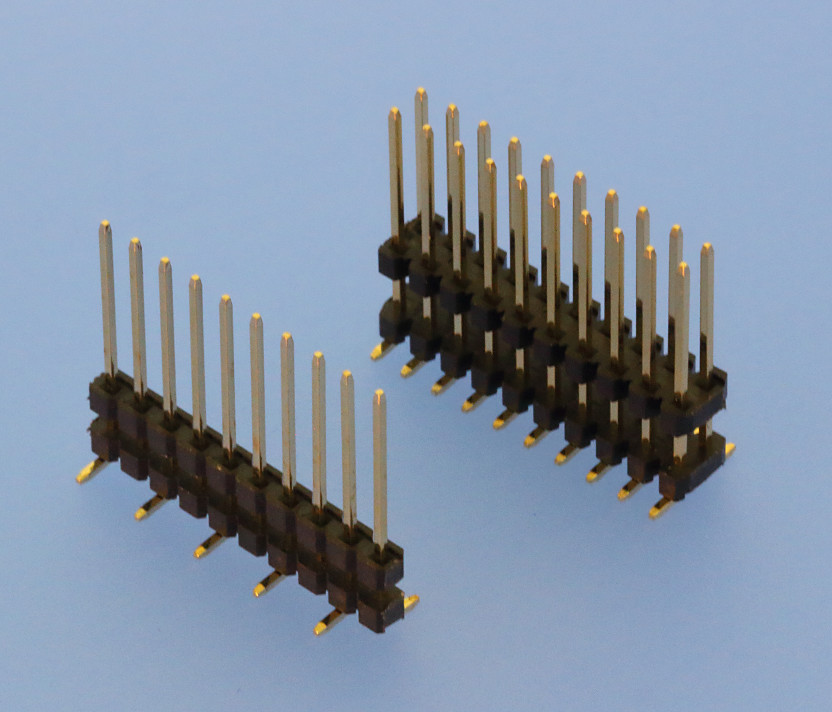

46-9533 / 46-9133 Economy Version
SMT Dual Body Pin Headers, 2.54mm Pitch, vertical, Double Row
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.64mm square pin, copper alloy
Contact Surface Au over Ni
Contact Resistance 20 mΩ max.
Insulation Resistance 1000 MΩ min.
Test Voltage 1000 V AC/DC
Current Rating 3.0 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds, single row)
(260 °C for 5 seconds, double row)
(260 °C for 10 seconds, single row)
(260 °C for 5 seconds, double row)
Downloads
Data Sheet download
