SMT Friction Lock Headers / Crimp Housings, 1.25mm Pitch, Vertical/Horizontal

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Square pin 0.75x0.30mm, copper alloy
Applicable wire AWG 32 ~ 28
Contact Resistance < 20 mΩ
Insulation Resistance > 100 MΩ
Test Voltage 250 V AC
Voltage Rating 125 V AC
Current Rating 1 A
Temperature Range -25 °C ... +85 °C
Processing 260 °C for 5s max.

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
5635
Contacts
Please select 1 option
02-15
Type
Please select 1 option
1 Female Housing
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
5635
Contacts
Please select 1 option
01
Type
Please select 1 option
2 Female terminal
Plating
Please select 1 option
50 Sn
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
5635
Contacts
Please select 1 option
02-15
Type
Please select 1 option

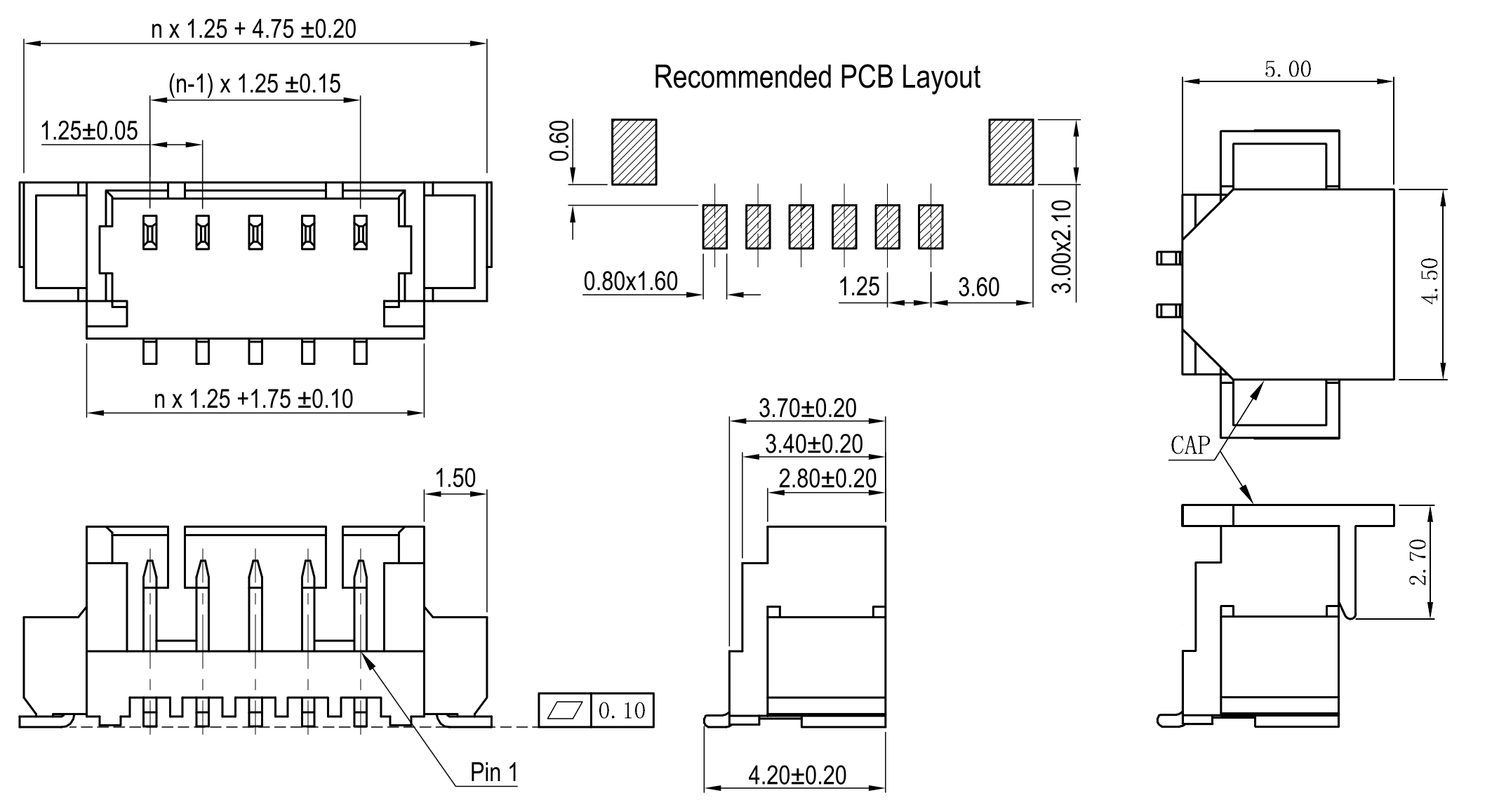

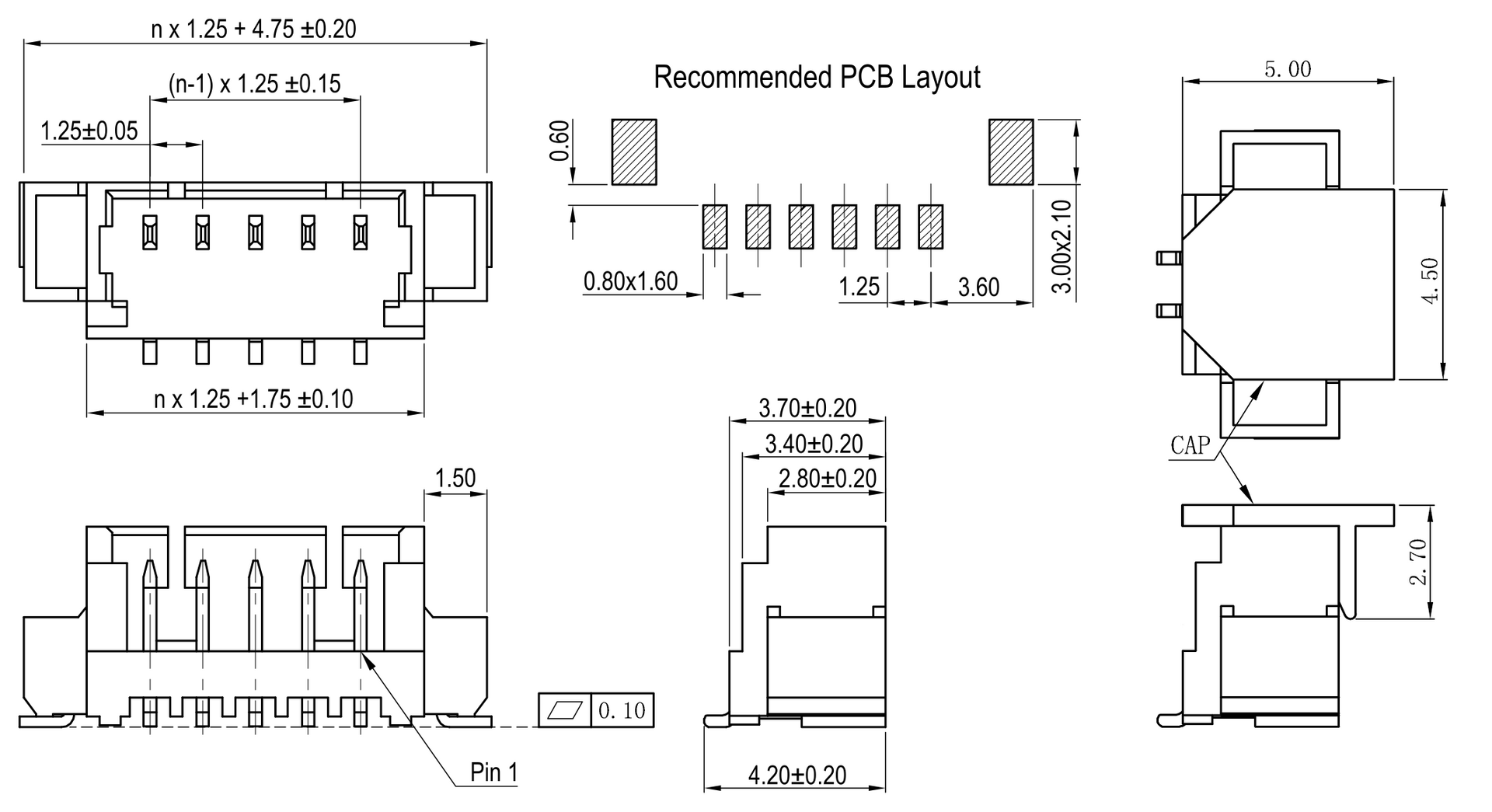

3 Pin header vertical
Plating
Please select 1 option
50 Sn
Packaging
Please select 1 option
PPTR Tape&Reel with Pick&Place-Pad
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
5635
Contacts
Please select 1 option
02-15
Type
Please select 1 option
4 Pin header horizontal
Plating
Please select 1 option
50 Sn
Packaging
Please select 1 option
TR Tape&Reel w/o Pick&Place-Pad
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
5635
Contacts
Please select 1 option
02-15
Type
Please select 1 option
5 Housing for male terminals
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
5635
Contacts
Please select 1 option
01
Type
Please select 1 option
6 Male terminals
Plating
Please select 1 option
50 Sn
Add to inquiry basket
