7059

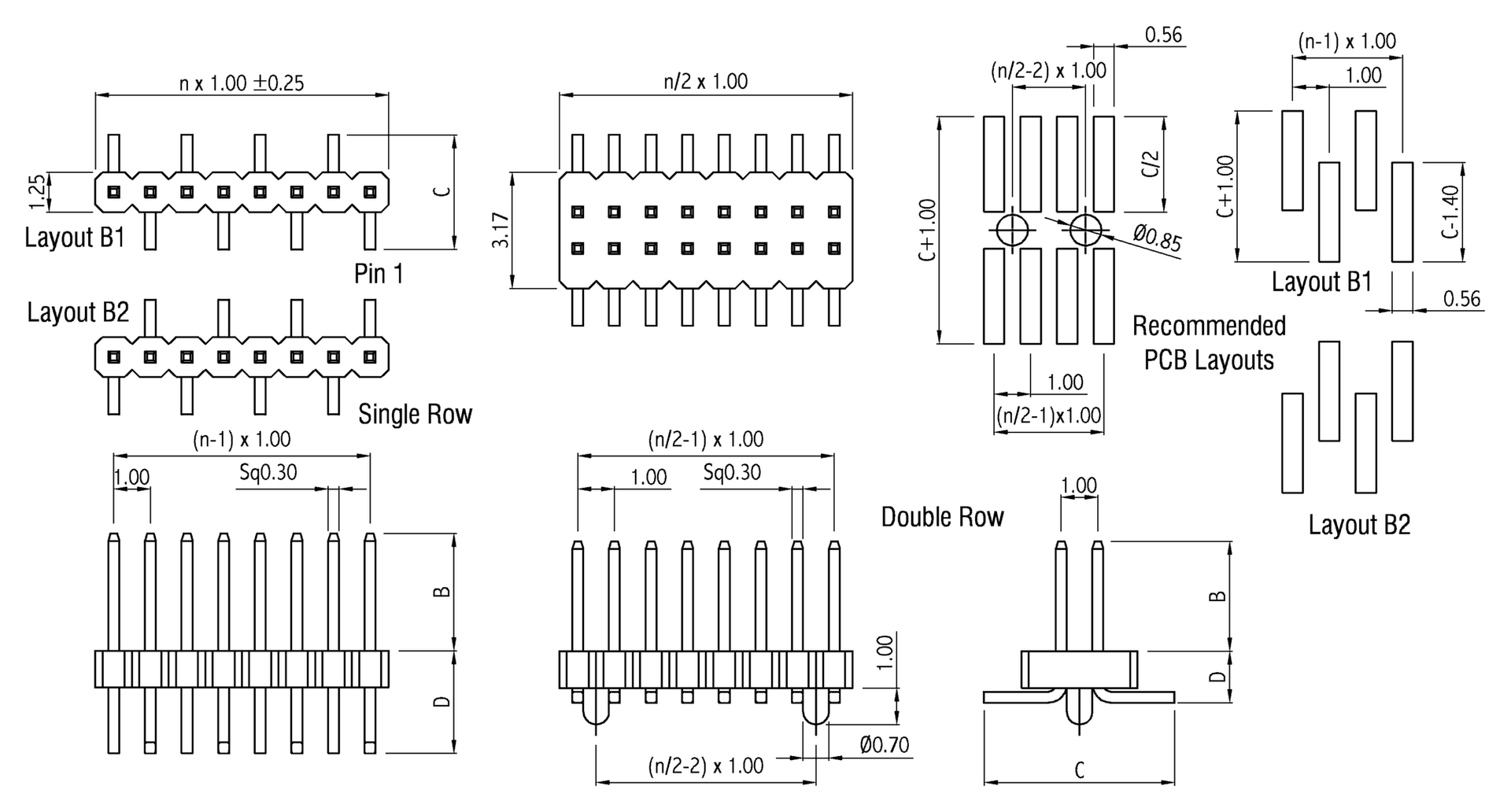

SMT Pin Headers, 1.00mm Pitch, Vertical, Single/Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.30mm square pin, copper alloy
Contact Surface Acc. to options (see below), over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 500 MΩ
Test Voltage 500 V AC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing Reflow soldering

Downloads

Data Sheet download
3D Models
7059-20-20-B3_9-C5_2-D2_8-xx-00-xxxx.stp download
show all Note: Embedded 3D data may have tolerances.

Passende Buchsenleisten:
Compatible Female Headers:
7091

Configure your product

Select the desired configuration:

Series
Please select 1 option
7059
Contacts
Please select 1 option
003-050 Single row
004-100 Double row
Rows
Please select 1 option
10 Single row B1
11 Single row B2
20 Double row
Dimensions
Please select 1 option
10 B=3.20 C=5.20 D=2.80mm
(w/o loc. pegs only)
99- Customer-specific

(B+D = 18mm max.)
Plating
Please select 1 option
00 Gold plated
50 Tin plated
Locating Pegs
Please select 1 option
00 W/o loc. pegs
10 With loc. pegs (for
double row only,
n/2 = even number,
D=1.5mm fixed)
Packaging
Please select 1 option
ST In tubes w/o Pick&Place-Pads
PPST In tubes with P&P-Pads
PPTR (Option) Tape & Reel with P&P-Pads
