Pin Headers, 1.00mm Pitch, Straight/Right-Angled, Single/Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.30mm square pin, copper alloy
Contact Surface Acc. to options (see below), over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 500 MΩ
Test Voltage 500 V AC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing Wave or reflow soldering

Downloads

Data Sheet download

Passende Buchsenleisten:
Compatible Female Headers:
7091

Configure your product

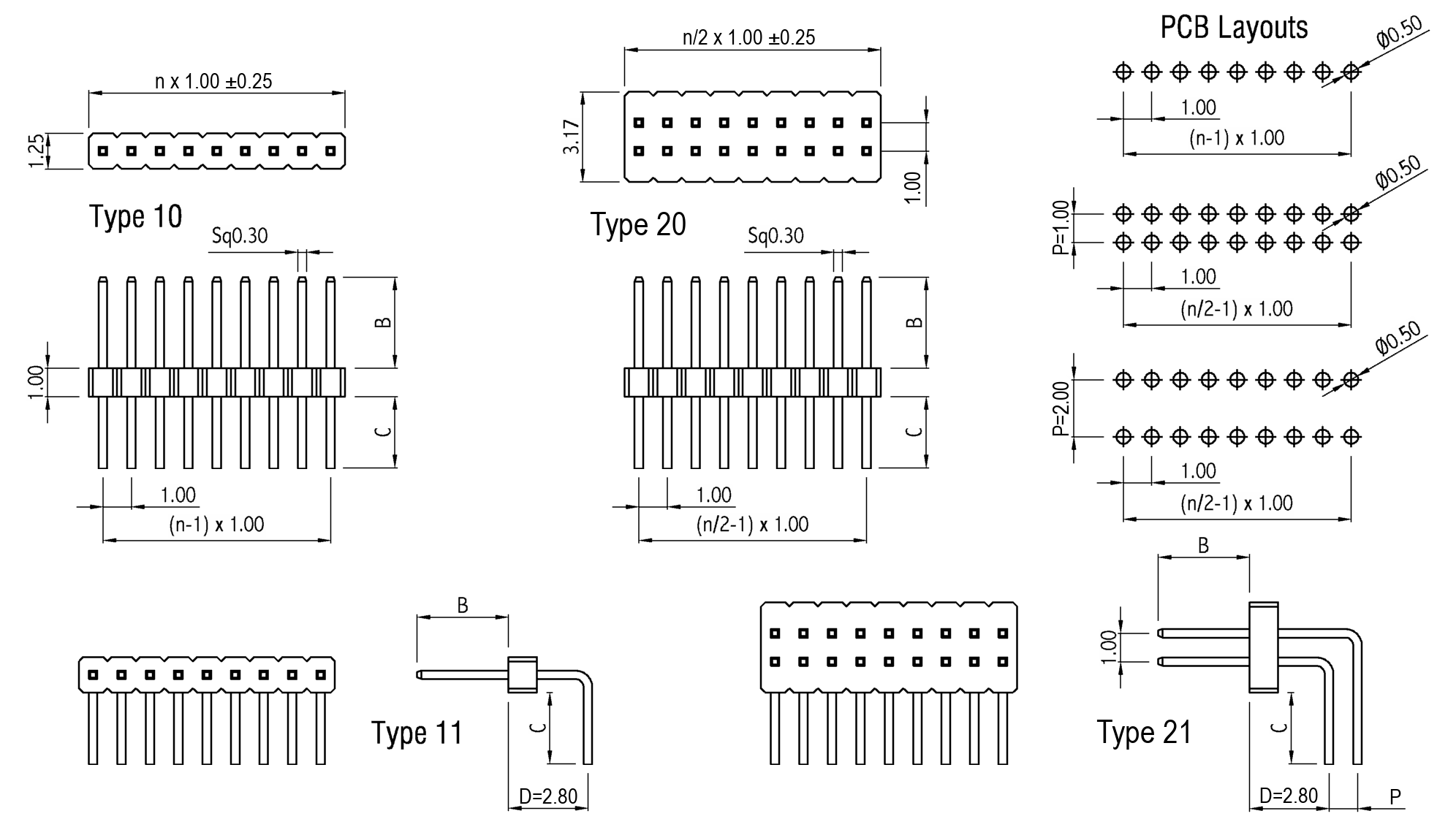

W+P PRODUCTS Zeichnung

Select the desired configuration:

Series
Please select 1 option
721
Type
Please select 1 option
10 Single row, straight
11 Single row, right-angled
20 Double row, straight
21 Double row, right-angled
Contacts
Please select 1 option
001-050 Single row
002-100 Double row
Dimensions
Please select 1 option
P=1.0mm & Single Row:
10 B=3.2 C=6.5mm
20 B=2.1 C=2.1mm
30 B=3.2 C=2.1mm
40 B=4.0 C=2.1mm

P=2.0mm:
21 B=2.1 C=2.1mm
31 B=3.2 C=2.1mm
41 B=4.0 C=2.1mm

99- Customer-specific
Plating
Please select 1 option
00 Gold plated
50 Tin plated
60 Duplex plating
