943PF / 944PF

Press-Fit Pin Header 2.54mm Pitch, Straight, Single / Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Acc. to options (see below), over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC
Current Rating 3 A
Temperature Range -40 °C ... +105 °C

Downloads

Data Sheet download

Passende Buchsenleisten:
Compatible Female Headers:
153PF 154 157 159 160/162 349 624 etc.
Weitere siehe Kapitel B
Please see ch. B for more

Configure your product

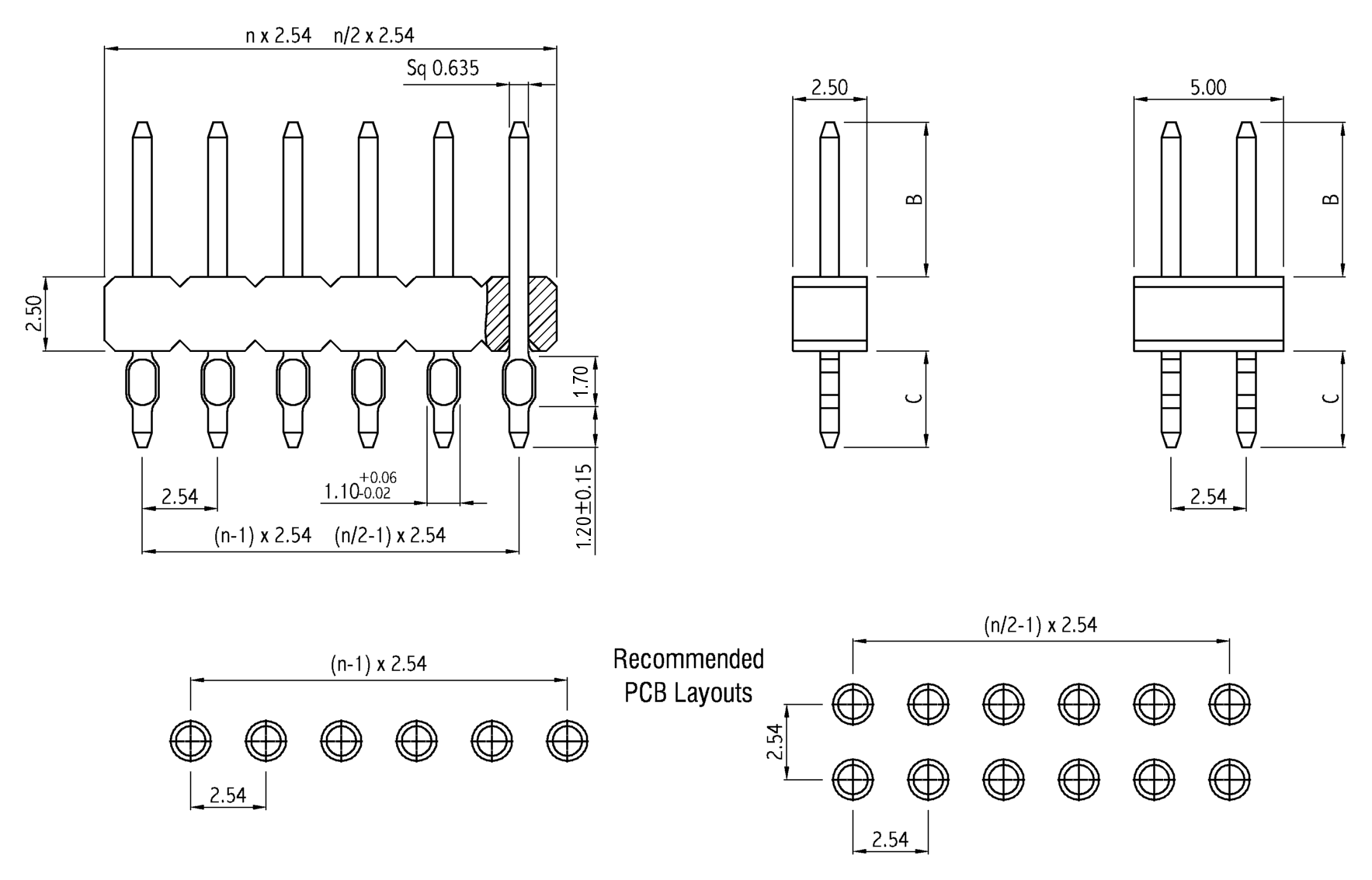

W+P PRODUCTS Zeichnung
Einpressen über Stiftspitze.
Press-in over pin tip.
Einpresszone s. Tech. Informationen.
See technical Information for PressFit zones.

Select the desired configuration:

Series
Please select 1 option
943PF Single row
944PF Double row
Dimensions
Please select 1 option
10 B=5.20mm; C=3.30mm
13 B=6.80mm; C=3.30mm
14 B=8.10mm; C=3.30mm
15 B=10.20mm; C=3.30mm
16 B=13.00mm; C=3.30mm
Contacts
Please select 1 option
01-40 Single row
02-80 Double row
Plating
Please select 1 option
00 Gold plated
50 Tin plated
110 Mating area 10µ\'\' Au, PressFit area Au flash
Add to inquiry basket

Weitere Stiftlängen auf Anfrage. Bmax=20mm.
More pin length options on request. Bmax=20mm.
