46-5830

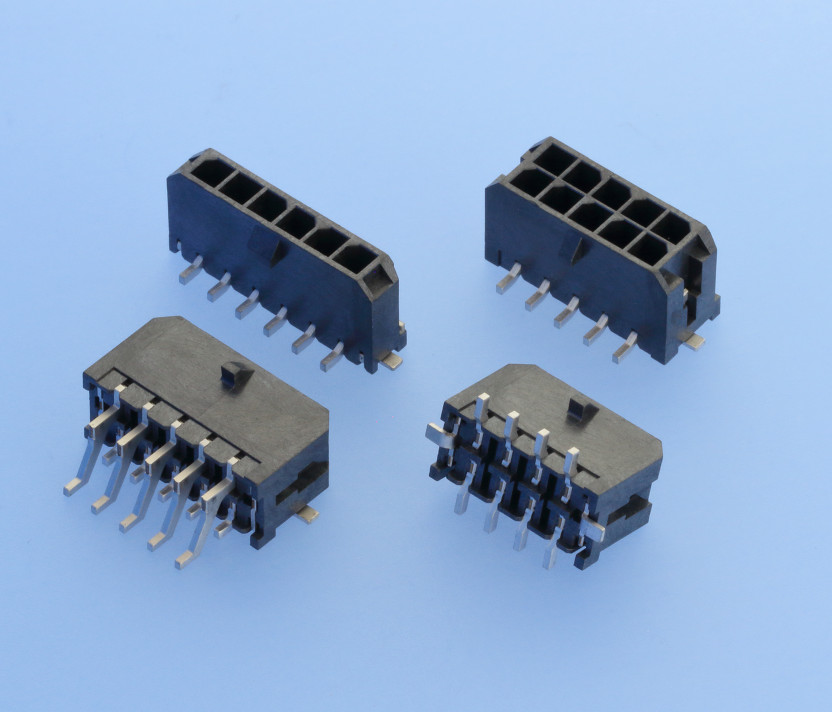

SMT Friction Lock Headers, 3.00mm Pitch, Vertical/Horizontal, Single/Double Row
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy, 0.64mm square pin
Contact Surface Sn over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 1.5 kV AC
Voltage Rating 250 V AC/DC
Current Rating 5 A AC/DC
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)
(260 °C for 10 seconds)
