46-721 Economy Version

Pin Headers, 1.00mm Pitch, Straight/Right-Angled, Single/Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 30 mΩ
Insulation Resistance > 500 MΩ
Test Voltage 500 V AC
Current Rating 0.75 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-721
Type
Please select 1 option
10 Single row, straight
11 Single row, right-angled
20 Double row, straight
21 Double row, right-angled
Contacts
Please select 1 option
001-028 Single row
002-040 Double row

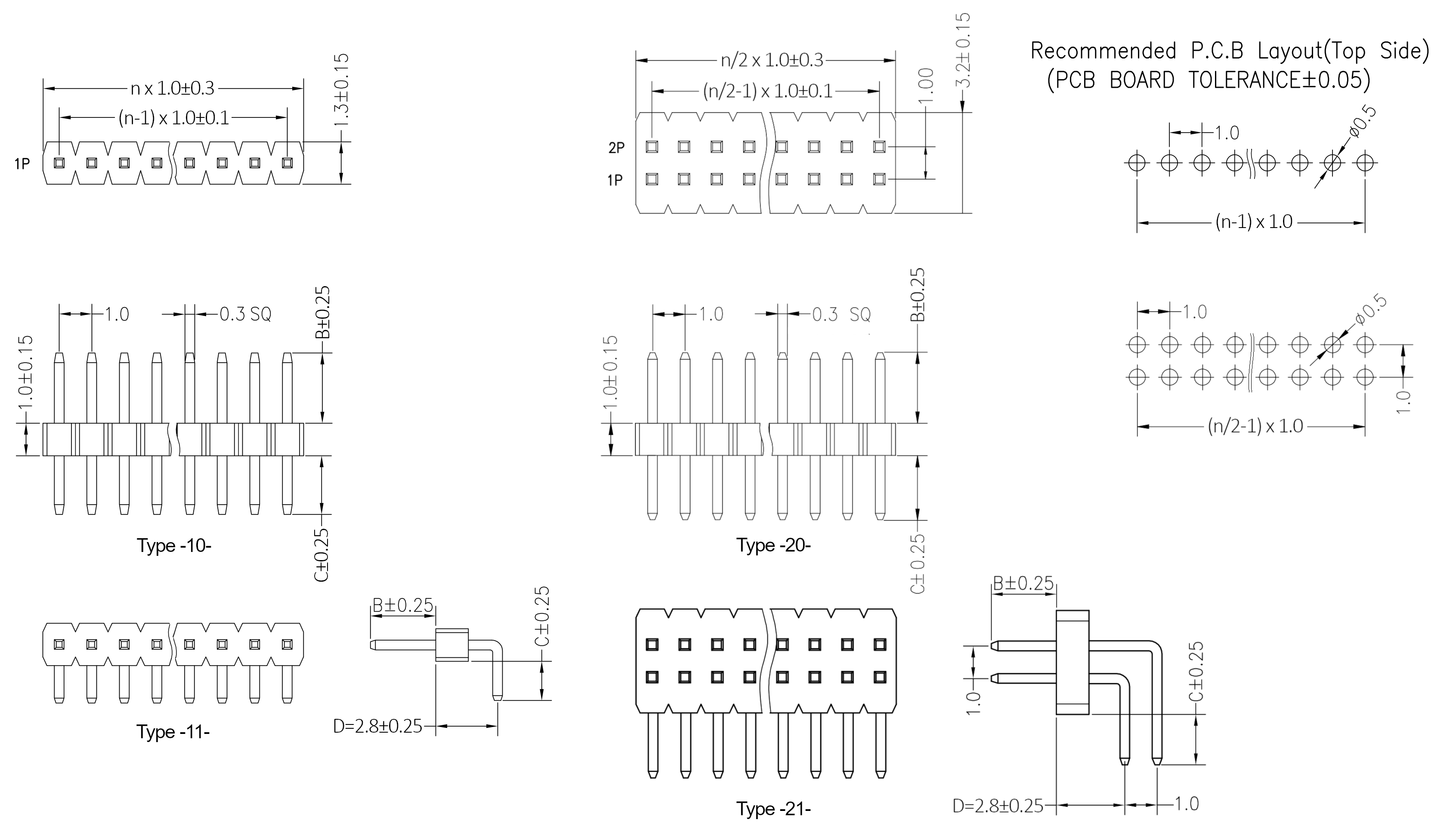

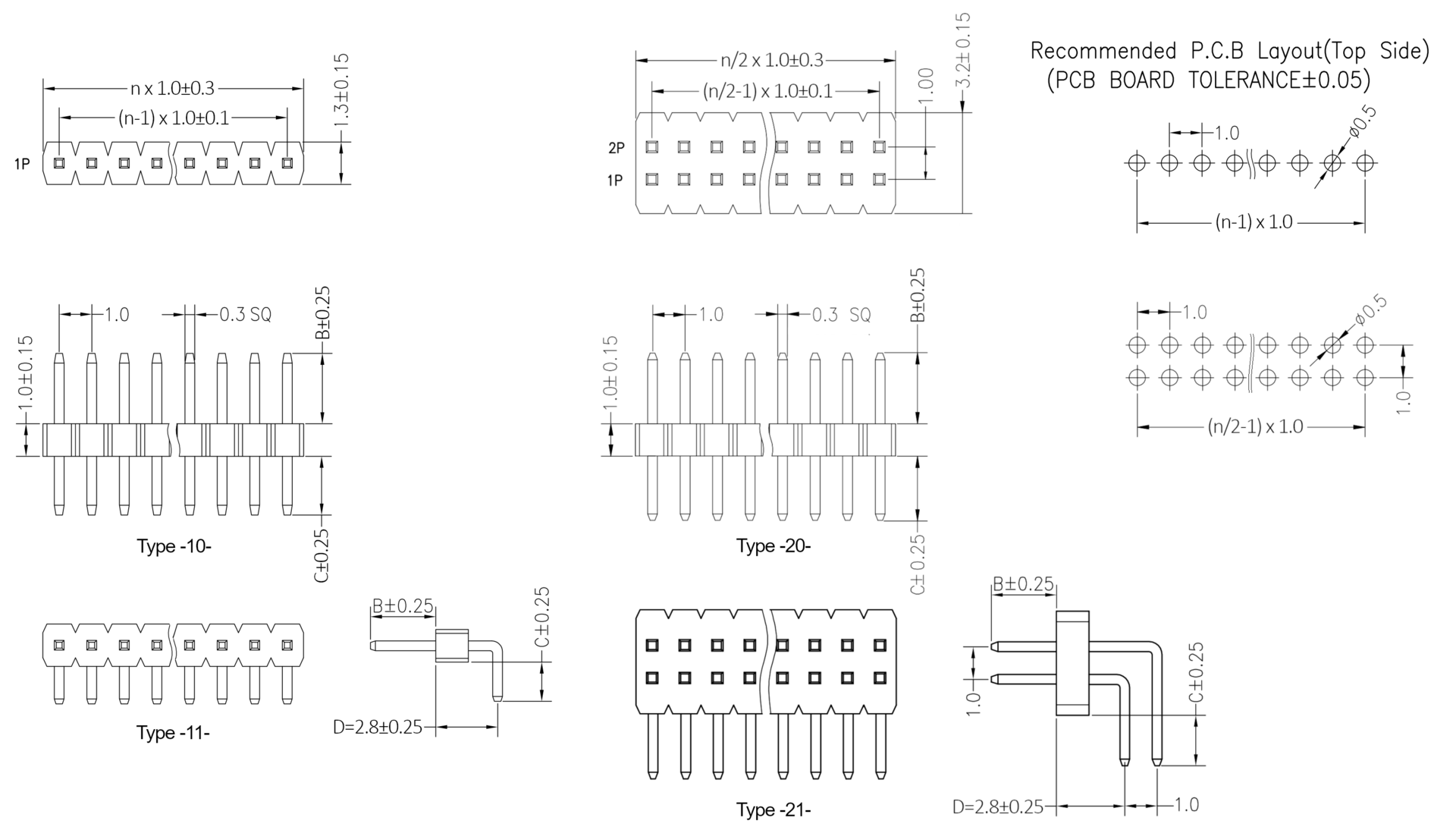

Dimensions
Please select 1 option
10 B=3.20 C=6.50
20 B=2.10 C=2.10
30 B=3.20 C=2.10
40 B=4.00 C=2.10
99- Customer-specific
Plating
Please select 1 option
00 Gold plated
