46-985 Economy Version

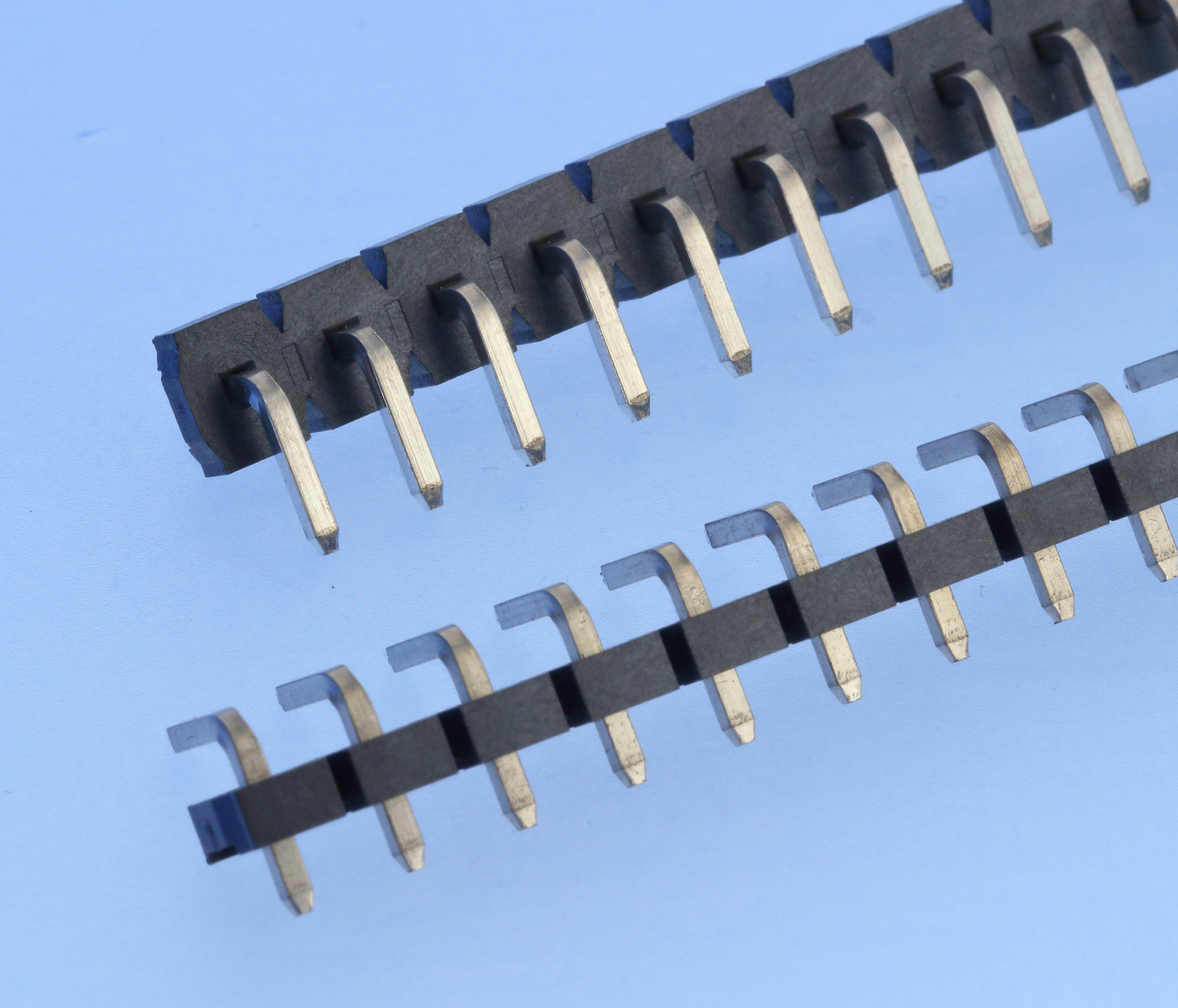

Pin Headers, 5.08mm Pitch, Straight, Right-angled – Power Contacts

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Sn over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 7 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-985
Dimensions
Please select 1 option
10 B=11,94 C=4,57mm
20 B=13,21 C=4,57
40 B=4,5 C=3,3mm
Contacts
Please select 1 option
02-20
Type
Please select 1 option

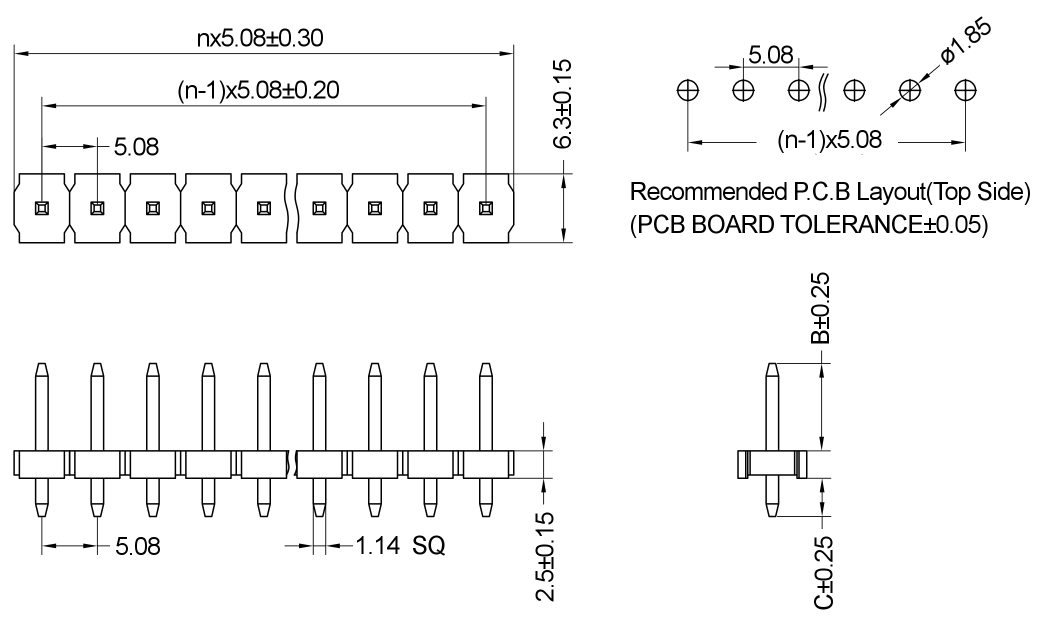

1 Straight
Plating
Please select 1 option
50 Tin Plated
Add to inquiry basket

Select the desired configuration:

Series
Please select 1 option
46-985
Dimensions
Please select 1 option
50 B=4,5 C=3,3 D=4,5mm
Contacts
Please select 1 option
02-20
Type
Please select 1 option

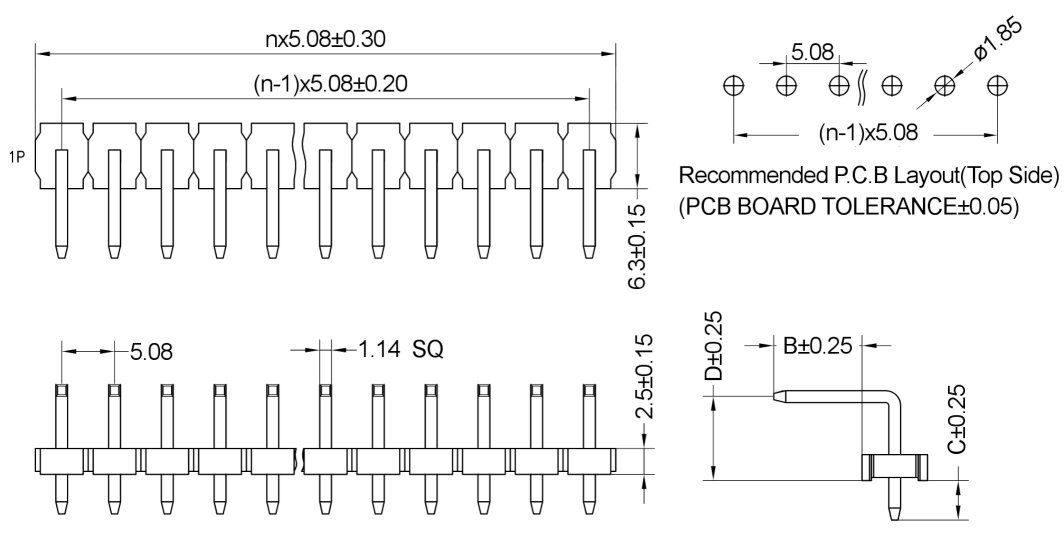

2 Right-angled - mating side
Plating
Please select 1 option
50 Tin plated
Add to inquiry basket

Technical Information
