46-702 / 46-703 Economy Version

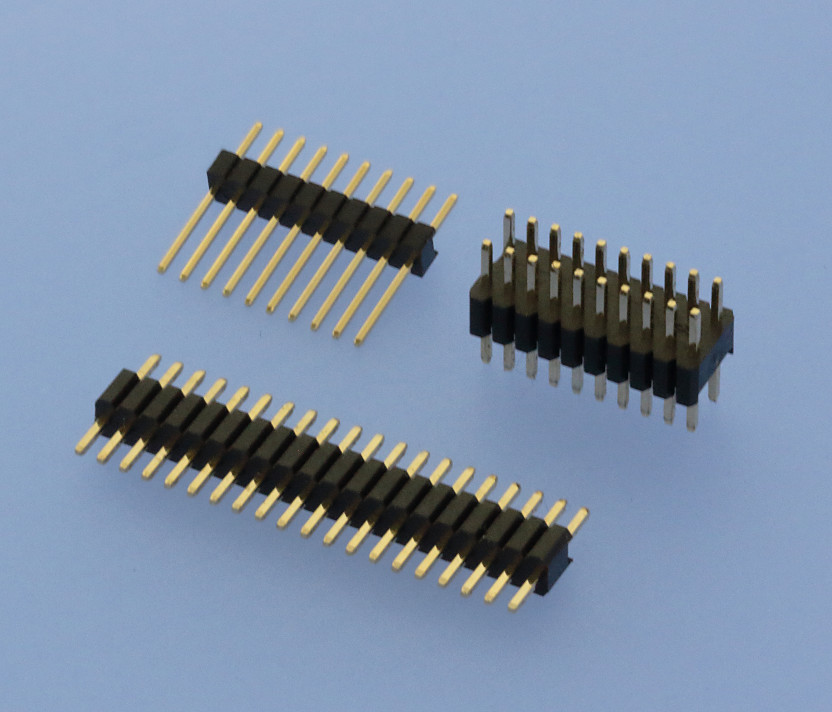

Pin Headers, 1.27x2.54mm Pitch, Straight, Single/Double Row

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Au over Ni
Contact Resistance < 20 mΩ
Insulation Resistance > 1000 MΩ
Test Voltage 500 V AC/DC
Current Rating 1 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)

Downloads

Data Sheet download

Configure your product

Select the desired configuration:

Series
Please select 1 option
46-702 Single row
46-703 Double row
Contacts
Please select 1 option
002-020 Single row (Dim. 10+20)
002-050 Single row (Dim. 30+40)
004-100 Double row
Dimensions
Please select 1 option
Single row:
10 B=2,80 C=2,60 H=1,70mm
20 B=6,00 C=3,00 H=1,70mm
30 B=2,80 C=2,60 H=2,50mm
40 B=6,00 C=3,00 H=2,50mm
Double row:
50 B=2,80 C=2,60 H=2,50mm
60 B=6,00 C=3,00 H=2,50mm
Plating
Please select 1 option
00 Gold plated
