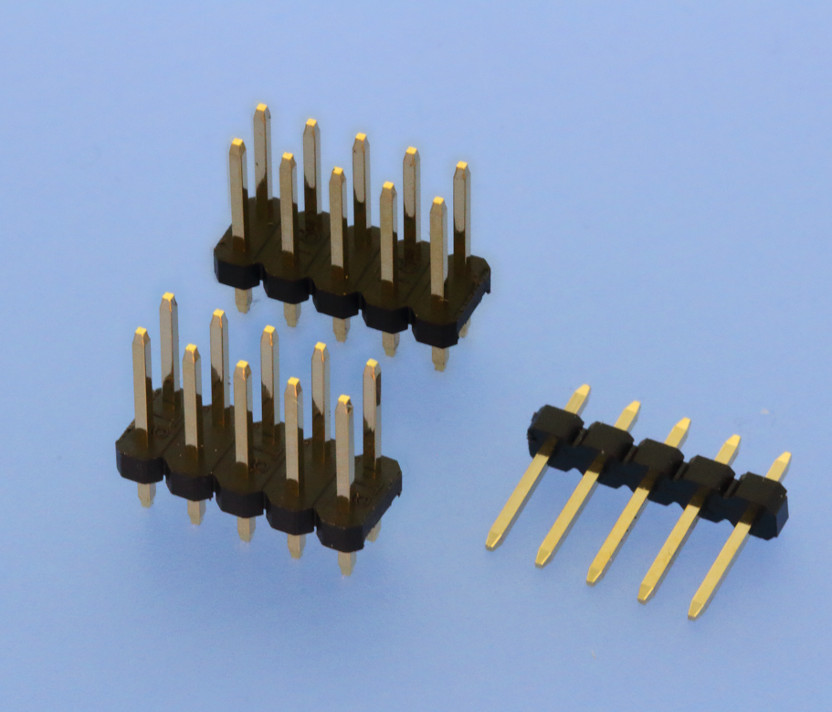

46-921 / 46-922 Economy Version

Pin Headers, 2.54mm Pitch, Straight, Single/Double Row – 1.5mm Body

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.64mm square pin, copper alloy
Contact Surface Au over Ni
Contact Resistance 20 mΩ max.
Insulation Resistance 1000 MΩ min.
Test Voltage 1000 V AC/DC
Current Rating 3 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 5 seconds, single row)
(260 °C for 10 seconds, double row)

Downloads

Data Sheet download

Passende Buchsenleisten:
Compatible Female Headers:
153 154 46-157 46-159 46-160 / 46-162 46-624 etc.
Weitere siehe Kapitel B
Please see ch. B for more

Configure your product

PCB Layouts und Detailzeichnungen s. tech. Informationen.
Please note tech. information for PCB layouts and detailed drawings.

Select the desired configuration:

Series
Please select 1 option
46-921 Single row
46-922 Double row
Dimensions
Please select 1 option
10 A=10,20 B=6,20 C=2,50mm
11 A=10,80 B=6,80 C=2,50mm
12 A=11,30 B=6,50 C=3,30mm
13 A=12,60 B=7,80 C=3,30mm
14 A=13,90 B=9,10 C=3,30mm
15 A=14,70 B=9,90 C=3,30mm
16 A=17,70 B=12,90 C=3,30mm
17 A=19,80 B=15,00 C=3,30mm
18 A=21,60 B=16,80 C=3,30mm
19 A=22,80 B=18,00 C=3,30mm
20 A=24,90 B=20,10 C=3,30mm
- More pin length options on request
Contacts
Please select 1 option
001-030 Single row
004-060 Double row
Plating
Please select 1 option
00 Gold plated
Add to inquiry basket

Technical Information
