46-931 / 46-932 Economy Version

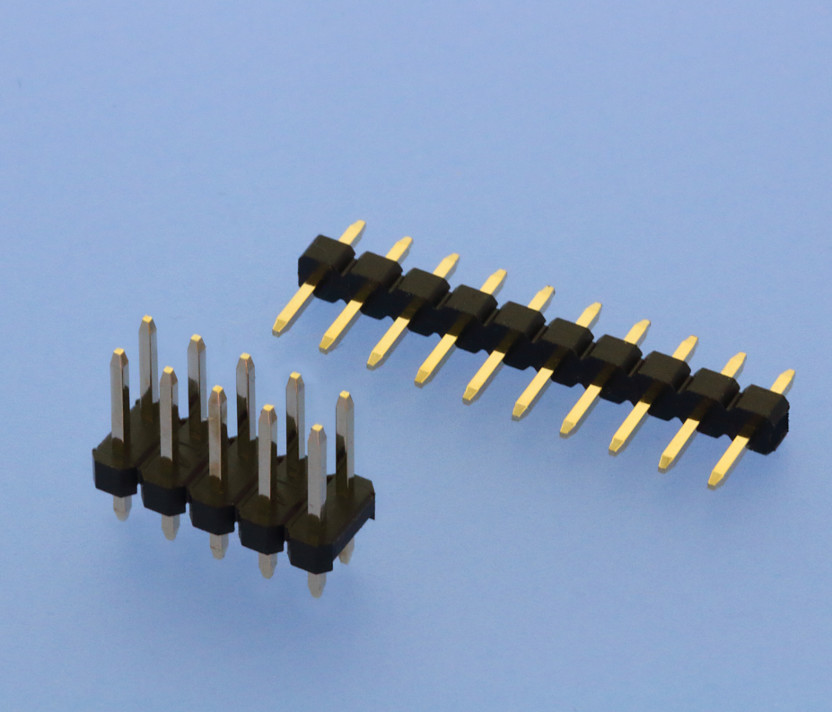

Pin Headers, 2.54mm Pitch, Straight, Single/Double Row – 1.7mm Body

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.64mm square pin, copper alloy
Contact Surface Au over Ni
Contact Resistance 20 mΩ max.
Insulation Resistance 1000 MΩ min.
Test Voltage 1000 V AC/DC
Current Rating 3 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 5 seconds)

Downloads

Data Sheet download

Passende Buchsenleisten:
Compatible Female Headers:
153 154 46-157 46-159 46-160 / 46-162 46-624 etc.
Weitere siehe Kapitel B
Please see ch. B for more

Configure your product

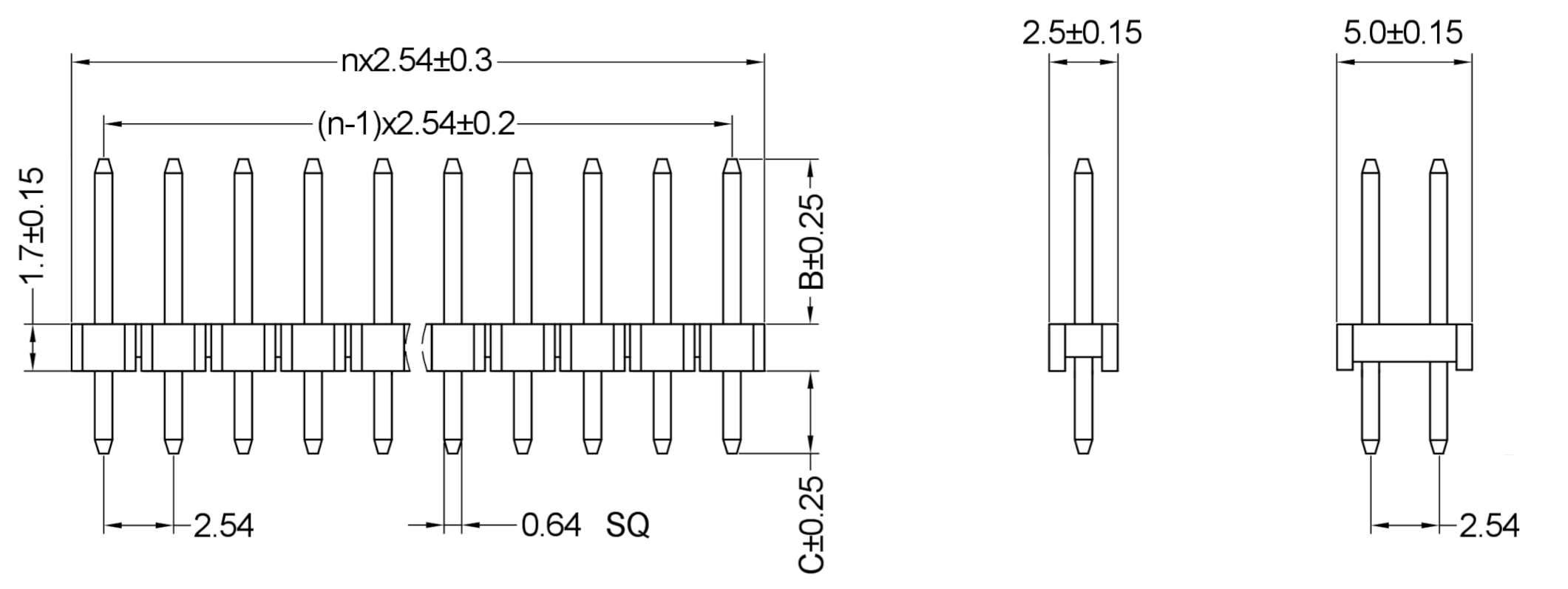

PCB Layouts und Detailzeichnungen s. tech. Informationen.
Please note tech. information for PCB layouts and detailed drawings.

Select the desired configuration:

Series
Please select 1 option
46-931 Single row
46-932 Double row
Dimensions
Please select 1 option
10 A=10,20 B=6,00 C=2,50
11 A=10,80 B=6,60 C=2,50
12 A=11,30 B=6,30 C=3,30
13 A=12,60 B=7,60 C=3,30
14 A=13,90 B=8,90 C=3,30
15 A=14,70 B=9,70 C=3,30
16 A=17,70 B=12,70 C=3,30
17 A=19,80 B=14,80 C=3,30
18 A=21,60 B=16,60 C=3,30
19 A=22,80 B=17,80 C=3,30
20 A=24,90 B=19,90 C=3,30
Contacts
Please select 1 option
001-040 Single row
004-080 Double row
Plating
Please select 1 option
00 Gold plated
