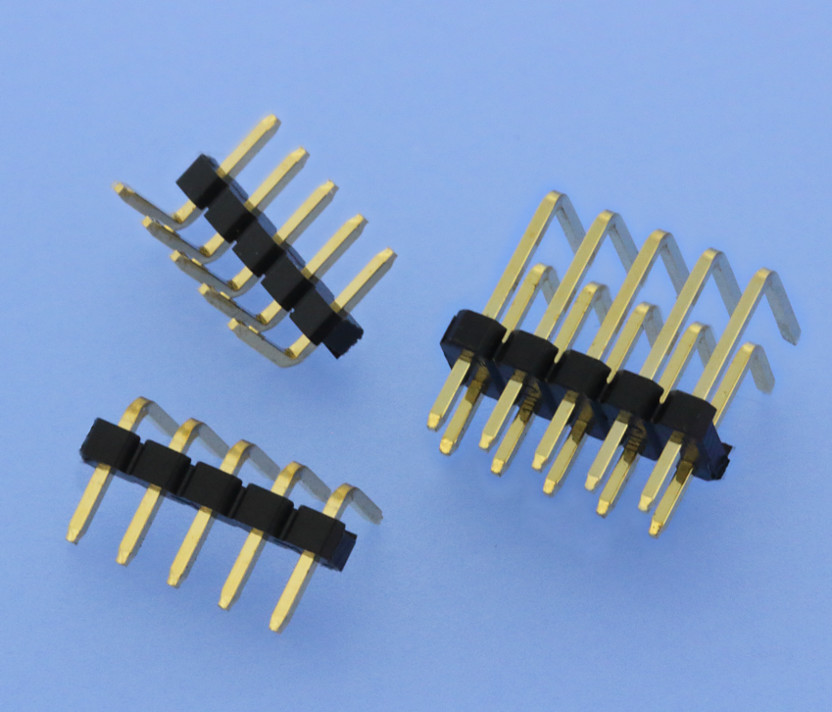

46-933 / 46-934 Economy Version
Pin Headers, 2.54mm Pitch, Right-Angled, Single/Double Row – 1.7mm Body
Go to configuration Note
Technical Data
Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.64mm square pin, copper alloy
Contact Surface Au over Ni
Contact Resistance 20 mΩ max.
Insulation Resistance 1000 MΩ min.
Test Voltage 1000 V AC/DC
Current Rating 3.0 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)
(260 °C for 10 seconds)
Downloads
Data Sheet download
Configure your product
PCB Layouts und Detailzeichnungen s. tech. Informationen.
Please note tech. information for PCB layouts and detailed drawings.
